A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, with a silicon gasket for medium temperature smoke applications. Operated automatically by pressure on the door jamb or stop by its adjustable strike. Includes aluminium cover for concealed fixing for face mounted installation.

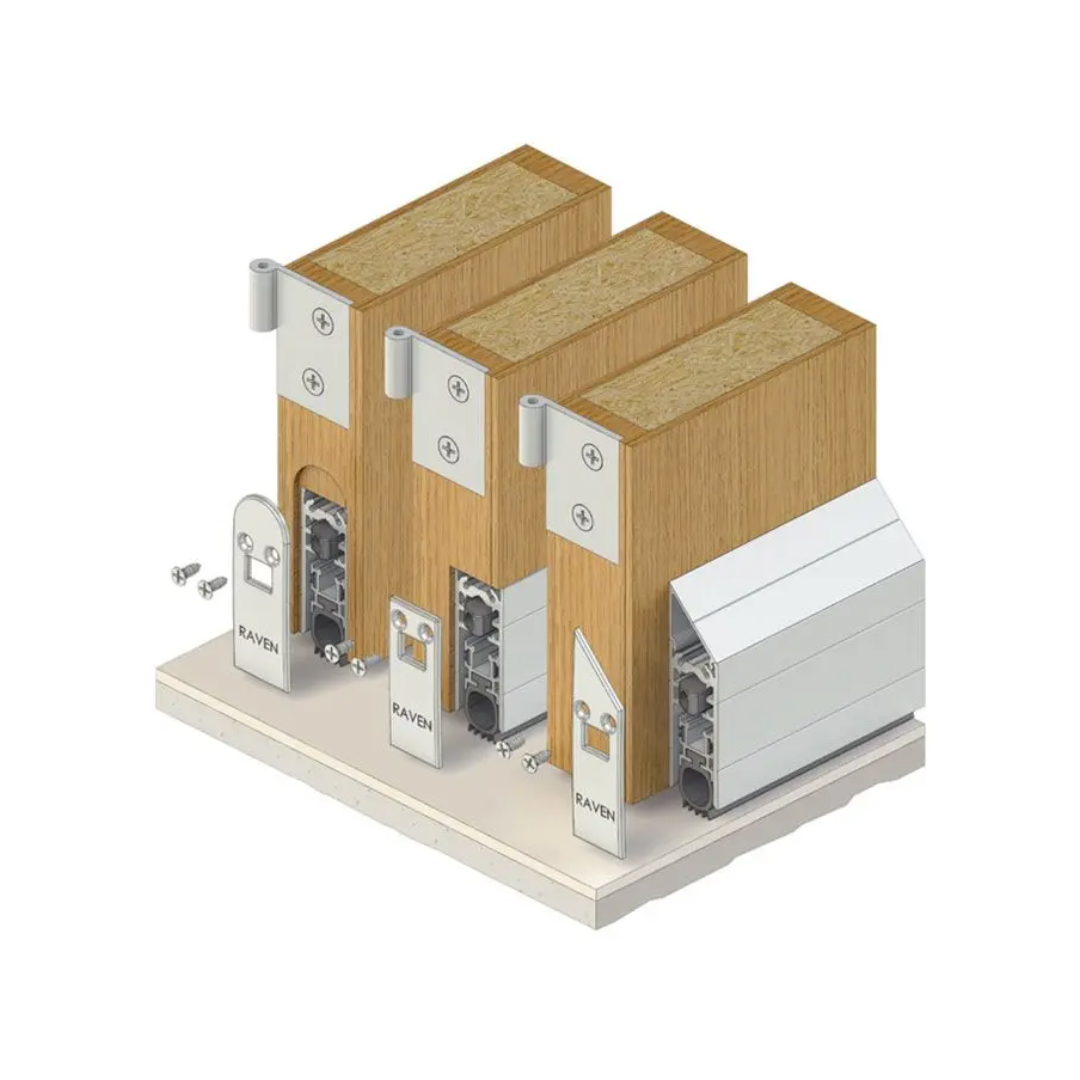

Location: Face mounted, semi-morticed or fully morticed into single and double solid core butt hinged doors. Can be fitted into the bottom rail of metal doors by the fabricator. Minimum door thickness of 40mm for semi and fully morticed installations. For double door fully morticed installations, plain meeting stiles required.

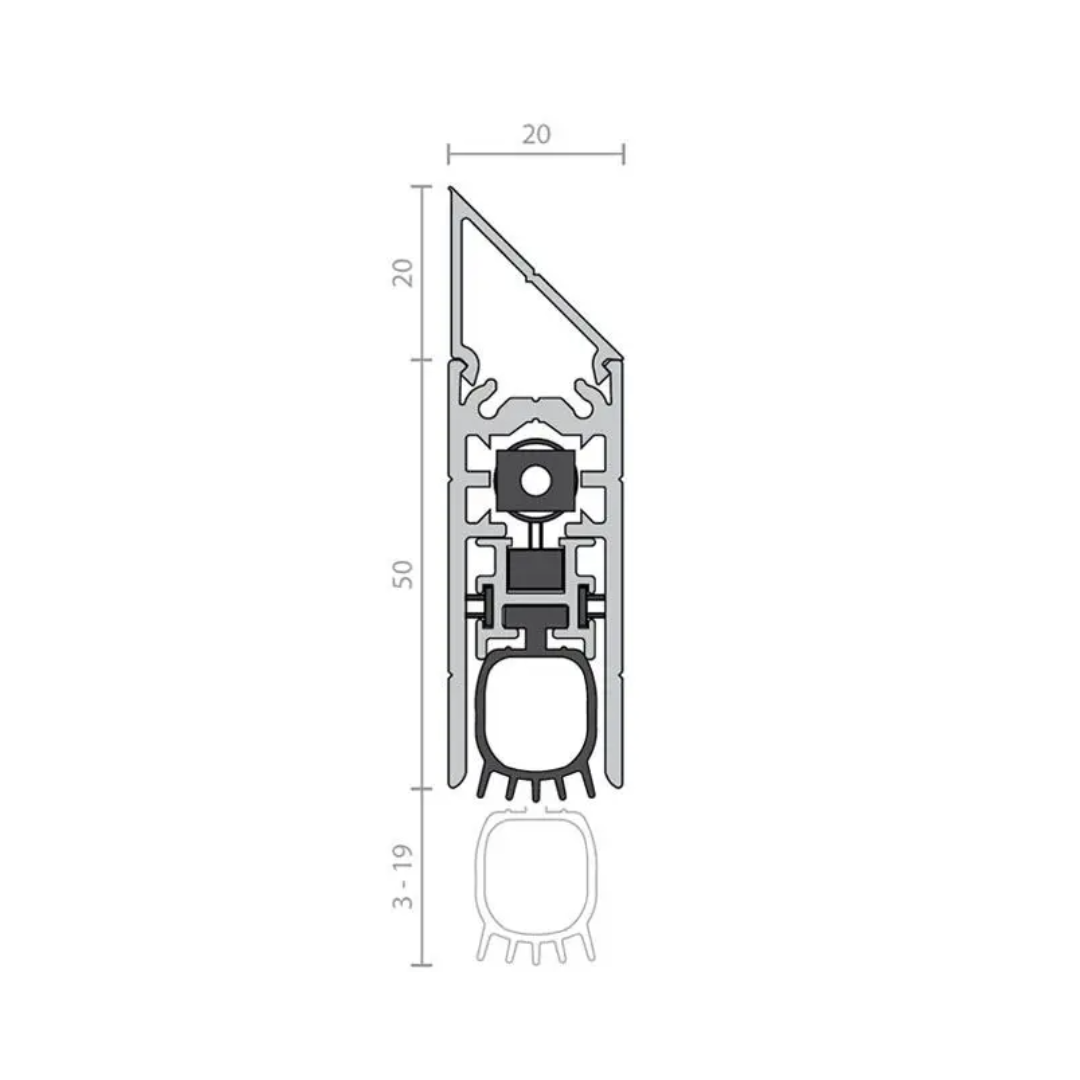

Min/Max Gap: 3mm to 19mm.
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied. Colour matched escutcheon plates and face mount aluminium angle included.
Seal: RP347Si. Black Silicon Rubber (SE).
Sizes: 1220mm, 1070mm, 920mm, 820mm, 720mm, 600mm, 380mm. Seals cut back to exact size.
Approvals
UL Cert. GVYI.R37913
Acoustic AUS/NZ: NCC Spec. F5.5.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
FRL & FRR-/240/60 and FD240.Fire Approved
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 "Sa", "Sm".
Energy NCC Pt. 3.12.3.3 & J3.4.
Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
Durability Tested to over 1,000,000 operating cycles without failure.
MPN
|
A99SIC
|
Brand
|
Raven
|
Product Height
|
70mm
|
Product Warranty
|
2 Years
|
Product Thickness
|
20mm
|
Product Finish or Colour
|
Clear Anodised (CA)
|
Product Material
|
Aluminium
|
Includes Fixing Screws
|
Yes
|
Fire Tested
|
Yes
|
Suitable for Smoke Doors
|
Yes
|
Acoustic Rated to AS1191 and ISO140.3
|
Yes
|
Suitable for Door Type
|
Timber Doors
|
Bush Fire Attack Level
|
Fire Zone
|
Contains Intumescent Material
|
No
|
Seal Can Be Installed
|
Surface Fix / Semi-Rebated / Concealed
|
Gasket / Seal Colour
|
Black
|
Gasket Material
|
Silicon Impregnated
|
Min Door Gap
|
3mm
|
Max Door Gap
|
19mm
|
