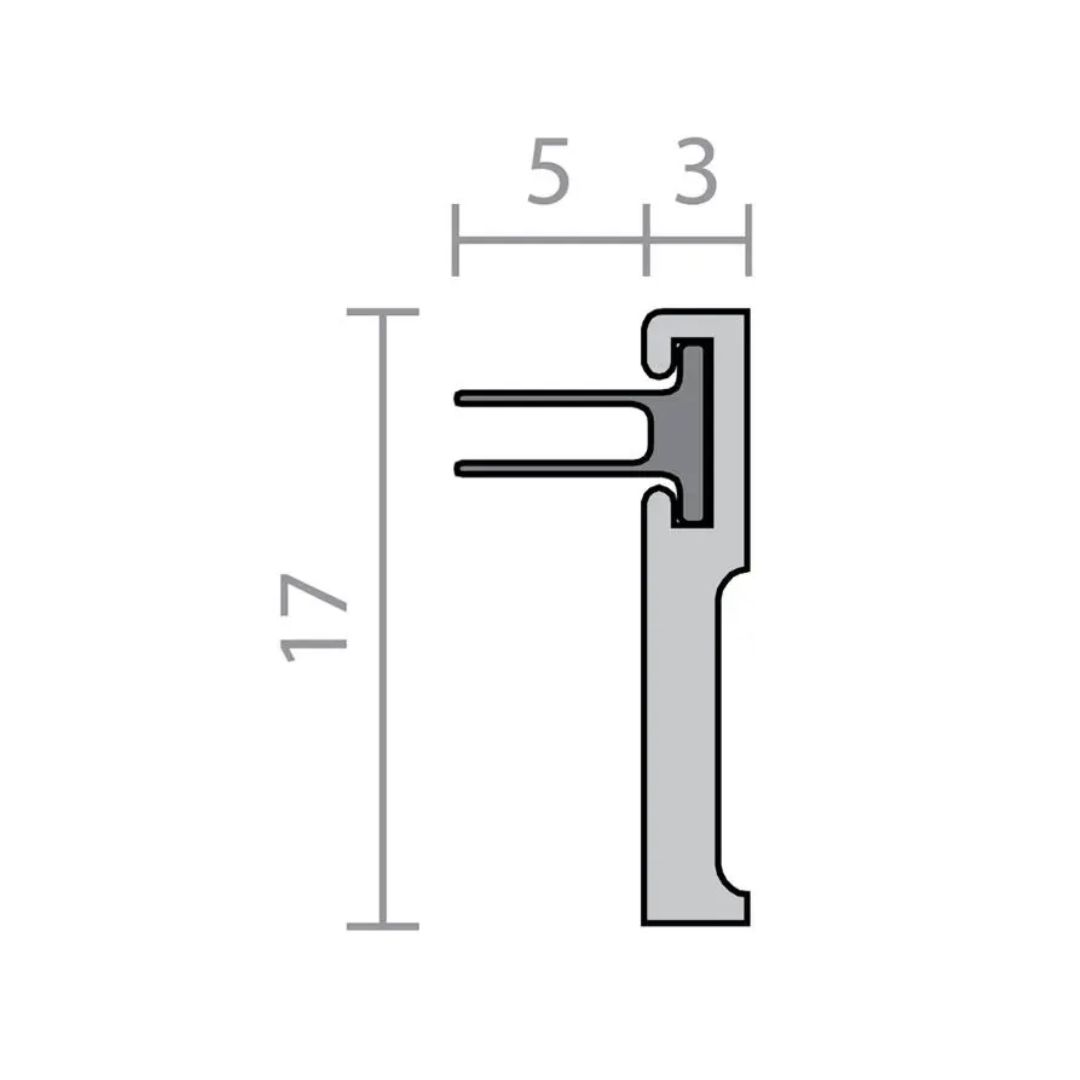

A medium temperature smoke astragal seal designed for plain or rebated meeting stiles of timber double doors where a centre latch bolt may be required or, where both doors are active. The seal is achieved by a pair of silicon fins. Two RP71Si seals are installed on to the one door stile which allows space for a latch between the two seals.
The legs of the seals can be checked out to accommodate the latch bolt front plate providing a continuous seal.
Note: Minimum door thickness subject to centre latch and dimensions of morticed door bottom seals.
Location: Meeting stiles of double butt hinged and centre pivot double acting doors.
Min/Max Gap: 3mm to 5mm.
Finish: Satin clear (silver), bronze, black anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-drilled and countersunk.
Seal: RP371Si. Grey silicon rubber (SE).
Sizes: 2250mm, 2500mm.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5.
Fire Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 "Sa", "Sm".
Energy NCC Pt. 3.12.3.3 & J3.4.
MPN
|
A71SIC
|
Brand
|
Raven
|
Product Width
|
17mm
|
Product Warranty
|
2 Years
|
Product Thickness
|
8mm
|
Product Finish or Colour
|
Clear Anodised (CA)
|
Product Material
|
Aluminium
|
Includes Fixing Screws
|
Yes
|
Fire Tested
|
No
|
Acoustic Rated to AS1191 and ISO140.3
|
Yes
|
Suitable for Smoke Doors
|
Yes
|
Suitable for Door Type
|
Timber Doors
|
Bush Fire Attack Level
|
BAL<40
|
Contains Intumescent Material
|
No
|
Seal Can Be Installed
|
Rebated / Surface Fix
|
Gasket / Seal Colour
|
Black
|
Gasket Material
|
Silicon
|
Min Door Gap
|
3mm
|
Max Door Gap
|
5mm
|
Self Adhesive
|
No
|
