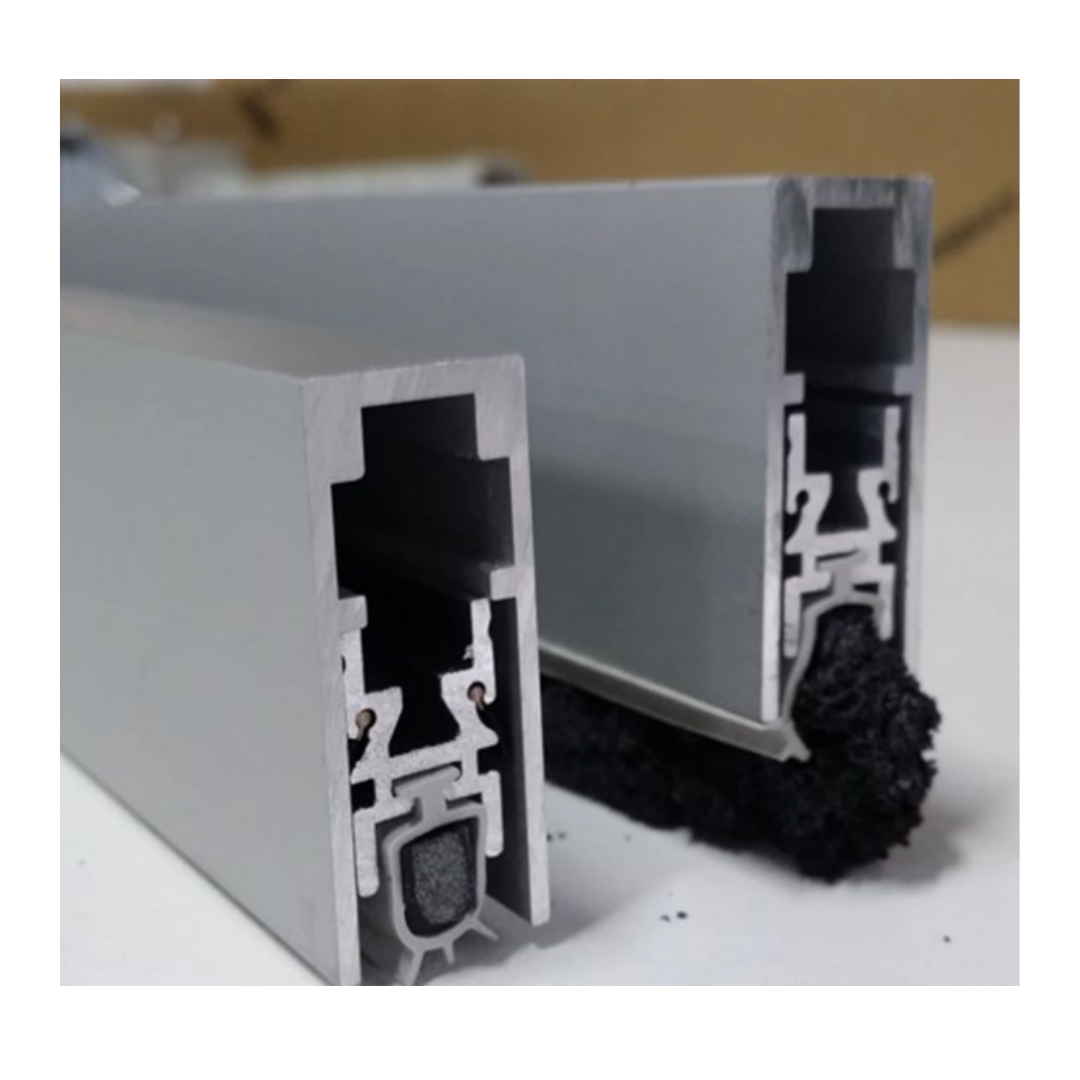

This fully mortised aluminium automatic drop seal features a silicone rubber gasket with intumsecent core and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance. The seal incorporates a high efficiency spring loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimetres.

Key benefits

• Fully concealed in bottom of door.
• Dual internal sealing fins enhance acoustic and smoke containment performance.
• Intumsecent core that rapidly expands when exposed to fire.
• Supplied with high performance fire rated silicone rubber gasket.
• Fully automatic, no power connection required.
• Simple adjustment to suit varying door gap requirements.
• Proven long term reliability.

Standard lengths

920mm (may be trimmed back to 820mm)

Gap sizes
Accommodates and seals gaps up to 13mm. Greater gaps can be sealed if product is used with a threshold plate.

Fixing method
Fits into a 15mm wide x 35mm deep groove and retained in place with screw fixed stainless steel end plates.

Finish
Silver anodised aluminium with stainless steel end plates and grey silicone rubber gasket with intumescent core.

Approvals
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
Smoke: Tested in accordance with AS1530.7 on AS6905 compliant door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 42Rw on appropriate rated assemblies.
Durability: Long term mechanical test, completing 100,000 cycles without failure.
