Name: Kilargo IS8011si-KG Door Bottom Drop Seal with Intumescent
Brand: Kilargo Pty Ltd
SKU: IS8011si-KG-0820CA
Price: 162.87 AUD
Availability: InStock

Got custom requirements? Email us for assistance

Kilargo IS8011si-KG Door Bottom Drop Seal with Intumescent

IS8011si-KG-0820CA

$162.87

incl GST.

Current Stock: 0

OUT OF STOCK

Current Lead time: 5-10 days

Current Stock: %number%

Current Lead time: 5-10 days

Not seeing your Trade price? Be sure to log in.

Size

820mm (cuts to 600mm)

920mm (cuts to 820mm)

1070mm (cuts to 920mm)

1220mm (cuts to 1070mm)

Kilargo IS8011si-KG Intumescent Automatic Door Bottom Seal

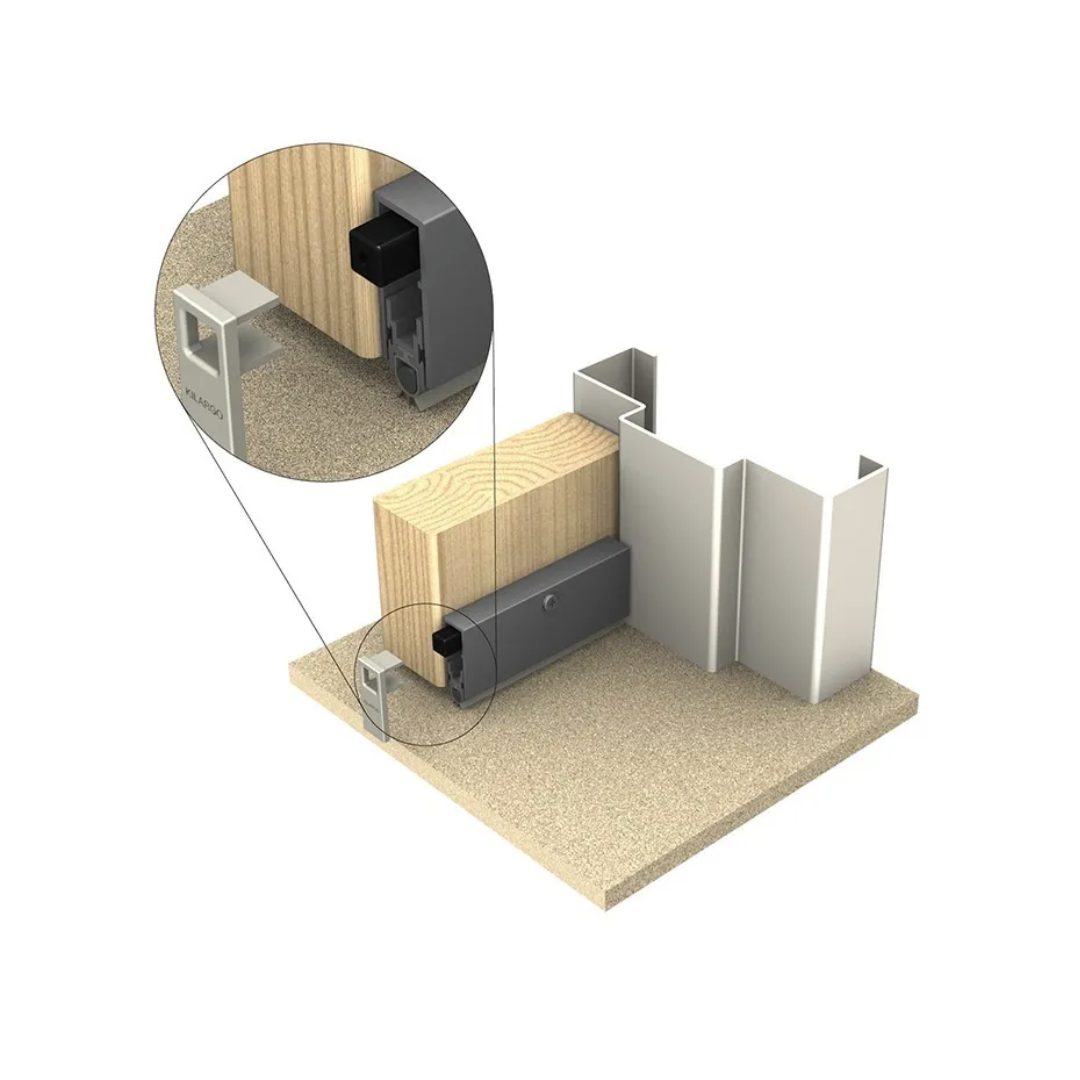

A medium-duty, automatic door bottom seal incorporating intumescent within the silicone gasket for hot smoke applications, which can be face-fixed or semi-rebated to the bottom edge of single-action doors. It operates automatically by a spring-loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.

The seal is fixed to the face of the door bottom using the ferrules and mounting screws provided. When the seal is to be semi-rebated, the seal is mounted into a 35mm deep x 14mm wide machined groove in the side of the door where the seal is to be positioned. The seal operated automatically by pressure against the door jamb on its adjustable strike button. The Seal contains a high-efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

Aesthetic, nylon push-fit end plates ensure longevity of the seal mechanism.

Gap Size

Min. 3mm / Max. 15mm

Available Lengths

820mm
920mm
1070mm
1220mm

IS8011si Maximum allowable cut-back sizes

820mm seal cuts to 600mm
920mm seal cuts to 820mm
1070mm seal cuts to 920mm
1220mm seal cuts to 1070mm

(*Seals can be cut on site for exact dimension).

Standard Colours

Silver anodised aluminium with stainless steel end plates, grey silicone gasket.
(Black silicone gasket also available upon request.)

Approvals

Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
Medium temperature smoke leakage tests to AS1530 Part 7 available on proprietary door assemblies
Conforms to BCA Specification C3.4 for smoke sealing requirements
Acoustic ratings to AS1191, ISO140.3 and ISO10140-2
Durability tests demonstrating over 1,000,000 open and close cycles

MPN	IS8011SI-KG
Brand	Kilargo
Product Height	35mm
Product Warranty	2 Years
Product Thickness	14mm
Product Finish or Colour	Clear Anodised (CA)
Product Material	Aluminium
Includes Fixing Screws	Yes
Fire Tested	Yes
Suitable for Smoke Doors	Yes
Acoustic Rated to AS1191 and ISO140.3	Yes
Suitable for Door Type	Timber Doors
Contains Intumescent Material	Yes
Seal Can Be Installed	Surface Fix
Gasket / Seal Colour	Grey
Gasket Material	Silicon Impregnated
Min Door Gap	3mm
Max Door Gap	15mm
