Name: Kilargo IS520si Automatic Door Bottom Seal, Face-fixed, Semi or Fully Mortised
Brand: Kilargo Pty Ltd
SKU: IS8520si-1500CA
Price: 384.12 AUD
Availability: InStock

Kilargo IS520si Automatic Door Bottom Seal, Face-fixed, Semi or Fully Mortised

Got custom requirements? Email us for assistance

Kilargo IS520si Automatic Door Bottom Seal, Face-fixed, Semi or Fully Mortised

IS8520si-1500CA

$384.12

incl GST.

Current Stock: 0

OUT OF STOCK

Current Lead time: 5-10 days

Current Stock: %number%

Current Lead time: 5-10 days

Not seeing your Trade price? Be sure to log in.

A heavy duty, automatic door bottom seal which can be semi-rebated or facefixed to the bottom edge of single action doors

Has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened

Pressure against the door jamb on the adjustable brass strike button operates the seal automatically

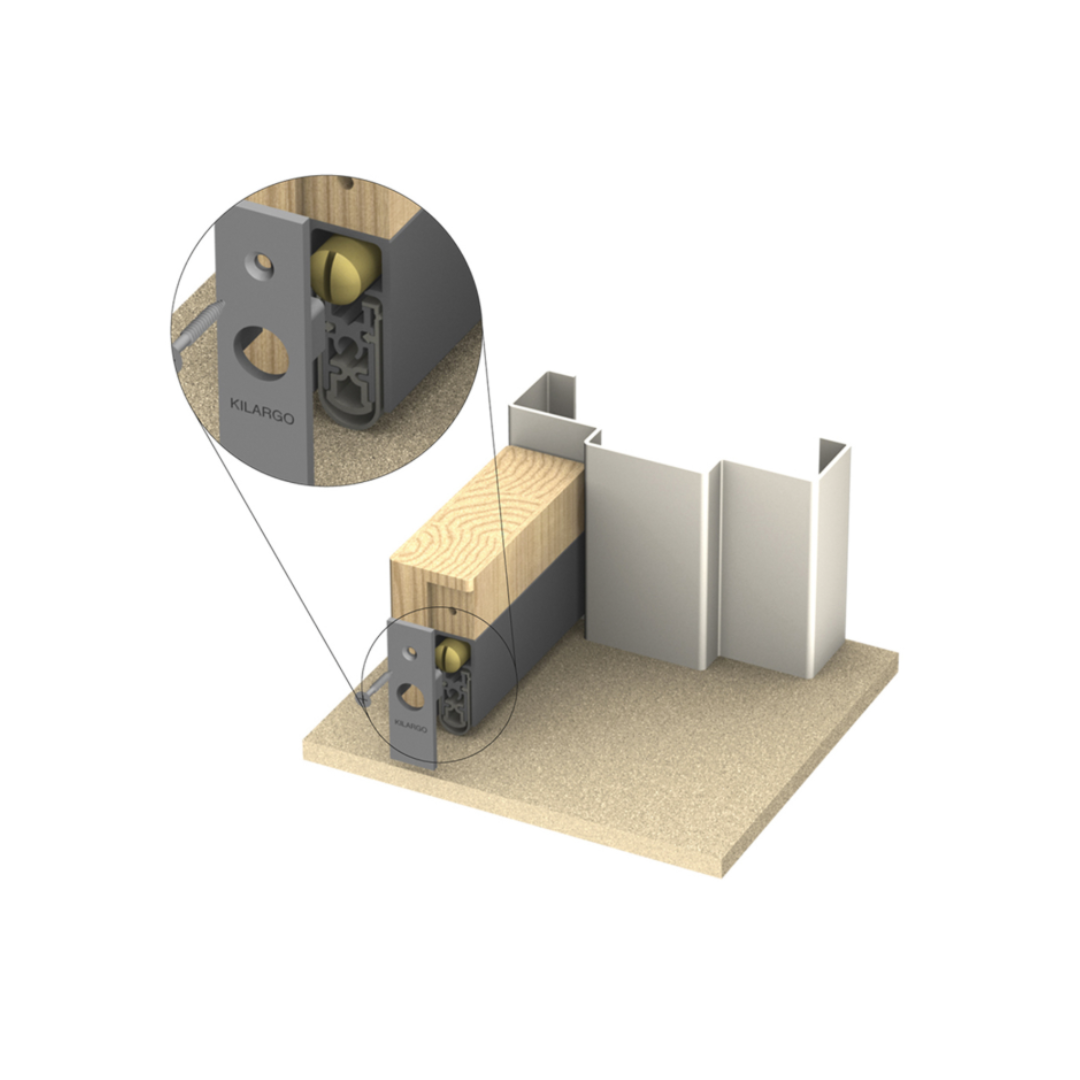

Face-fixed: The seal is fixed to the face of the door bottom using the fixing screws provided. A set of rigid push-fit nylon end plates ensure longevity of the seal mechanism.

The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

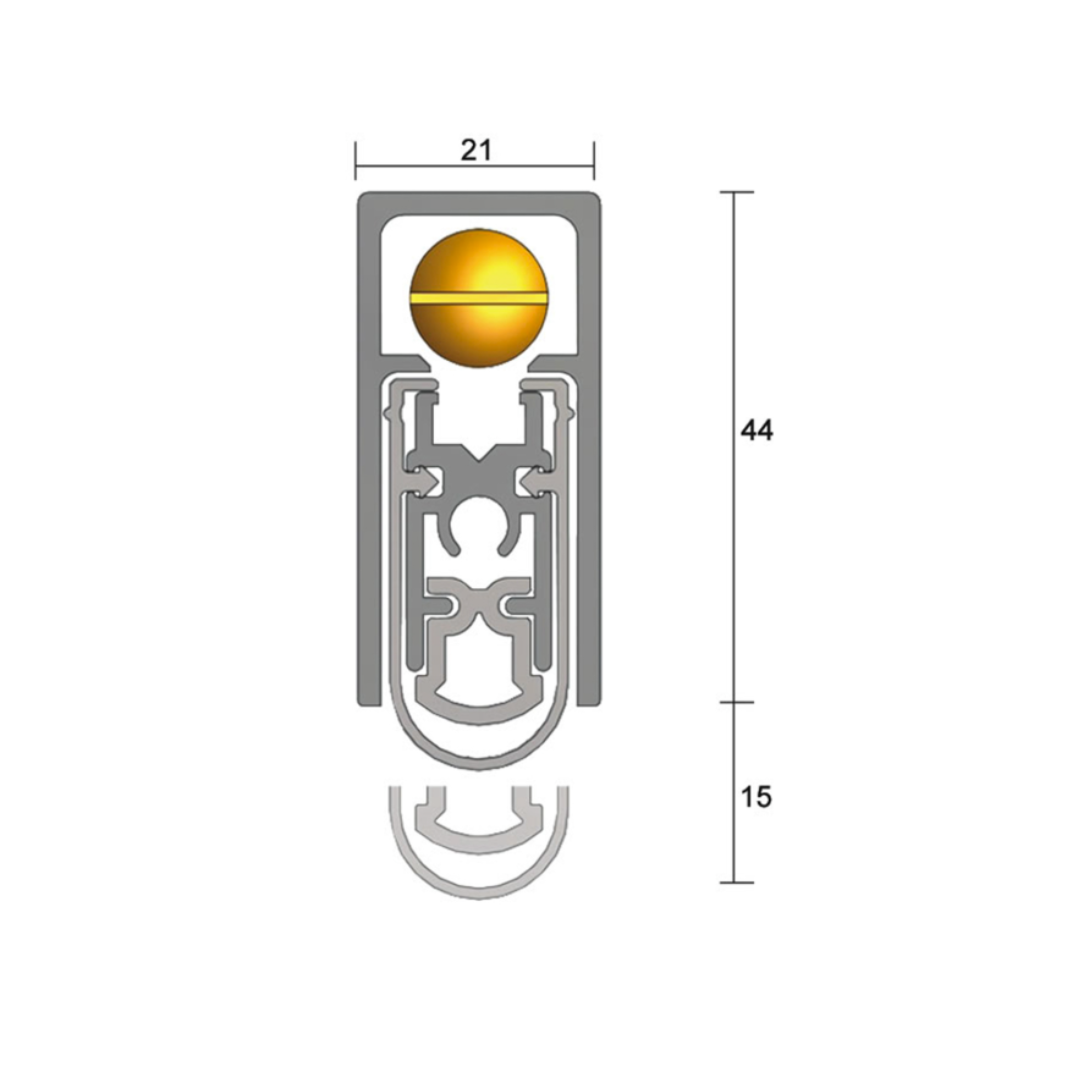

Semi-rebated: When the seal is to be semi-rebated, the seal is mounted into a stepped rebate: a 44mm deep x 21mm wide machined groove on the side of the door to which the seal will be positioned. The seal can be screw-fixed into position and fitted with the castaluminium end plates provided.

Specifications:

Gap size: Min. 6mm / max. 15mm
Available Size (Lengths): 1500mm
Antimicrobial: No
Finish: Clear Anodised
Maximum Allowable Cut-Back Size: 1500mm seal cuts to 1220mm

Approvals:

Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
UL Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
Conforms with BCA Specification C3.4 smoke sealing requirements
Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
Durability tests demonstrating over 1,000,000 open and close cycles
