Name: Kilargo IS5177Asi Angled Silicone Seal
Brand: Kilargo Pty Ltd
SKU: IS5177Asi-1000CA
Price: 88.78 AUD
Availability: InStock

Got custom requirements? Email us for assistance

Kilargo IS5177Asi Angled Silicone Seal

IS5177Asi-1000CA

$88.78

incl GST.

Current Stock: 0

OUT OF STOCK

Current Lead time: 5-10 days

Current Stock: %number%

Current Lead time: 5-10 days

Not seeing your Trade price? Be sure to log in.

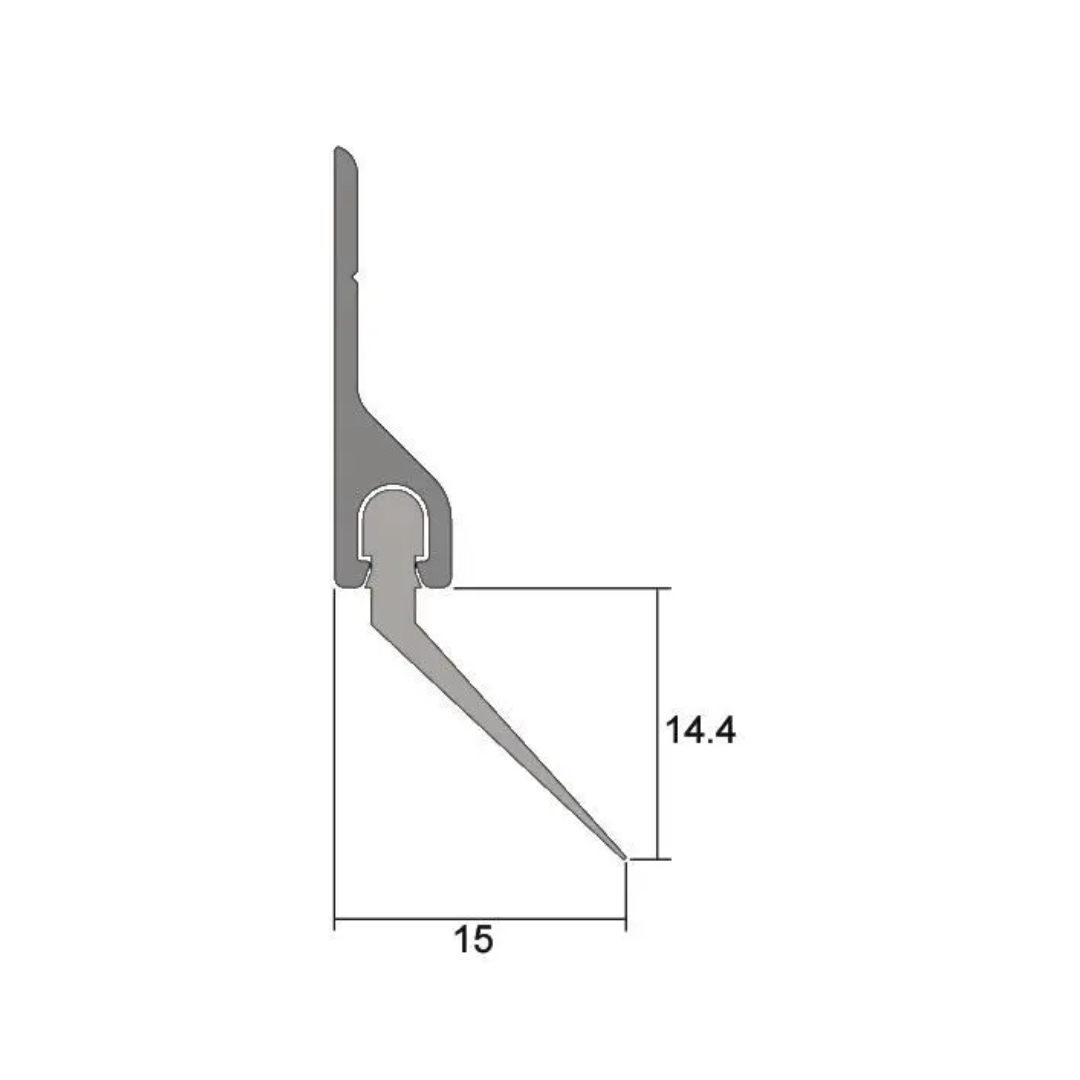

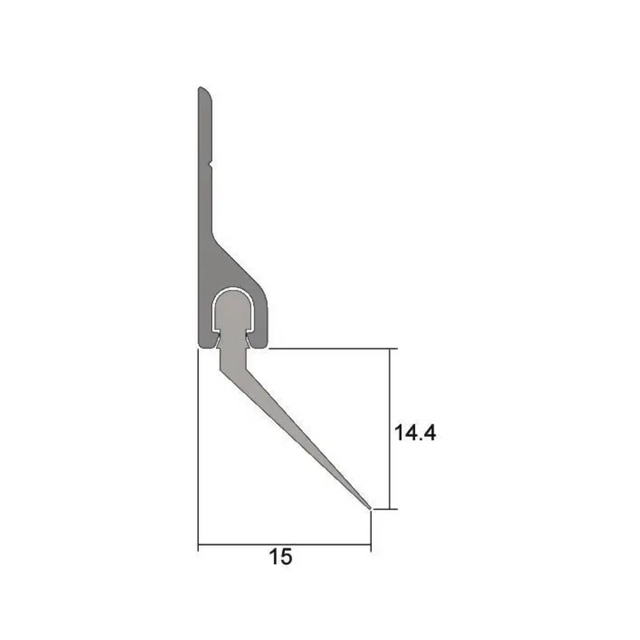

These silicone sweep seals are all utilised to prevent ambient/ medium temperature smoke, draught and dust penetration. The IS5177Asi seal has an angled silicone gasket and can be utilised around perimeters of automatic pivot and sliding doors to good effect.

Standard Lengths

1000mm
2250mm
Also available in: 250mm increments from 1000mm to 5000mm (Special Order Only)

Standard Finishes

Silver anodised aluminium carrier with grey silicone fin
(Black silicone fins also available upon request)

Fixing

Silicone sweep seals (within carriers) can be screw-fixed (and self-adhered) to the desired surface
Fixing screws and aggressive backing tape are supplied

Approvals

Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
Conforms with NCC Specification C3.4 smoke sealing requirements
Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2

MPN	IS7010SI
Brand	Kilargo
Product Width	27.5mm
Product Height	7.5mm
Product Warranty	2 Years
Product Finish or Colour	Clear Anodised (CA)
Product Material	Aluminium
Includes Fixing Screws	Yes
Fire Tested	Yes
Acoustic Rated to AS1191 and ISO140.3	Yes
Suitable for Smoke Doors	Yes
Suitable for Door Type	Timber Doors, Aluminium Doors
Contains Intumescent Material	No
Seal Can Be Installed	Surface Fix
Gasket / Seal Colour	Grey
Gasket Material	Silicon
Min Door Gap	0mm
Max Door Gap	6mm
Self Adhesive	No
