Kilargo KG5102 2-piece Self-adhesive High Performance Perimeter Upgrade Seal
Kilargo KG5102 2-piece Self-adhesive High Performance Perimeter Upgrade Seal

Got custom requirements? Email us for assistance

Kilargo KG5102 2-piece Self-adhesive High Performance Perimeter Upgrade Seal

KG5102-1000

$26.36

incl GST.
Current Stock: 2
OUT OF STOCK
Current Lead time: 5-10 days
Current Stock: %number%

Current Stock: 2

Not seeing your Trade price? Be sure to log in.
Size

Allows for a cost-effective and clean build-up of non-rated steel frames with only 15mm stops, in lieu of the conventional 25mm stops required for fire doors.

Key Features

  • Can provide up to 2 hours fire resistance on proprietary fire doors.
  • Non compliant fire doors can be salvaged.
  • Cost-effective solution.
  • Easy retro-fit installation.
  • Ideal for fire engineered solutions where extra protection is necessary for life safety.
  • Various lengths available (1000mm to 3000mm)

Materials

Consis Twin Fin of 2 x purpose-designed flame retardant PVC top hat sections, encapsulating intumescent material, with aggressive self-adhesive backing tape.

Gap Size

Nominal 2mm to 3mm perimeter gaps.

Sizes

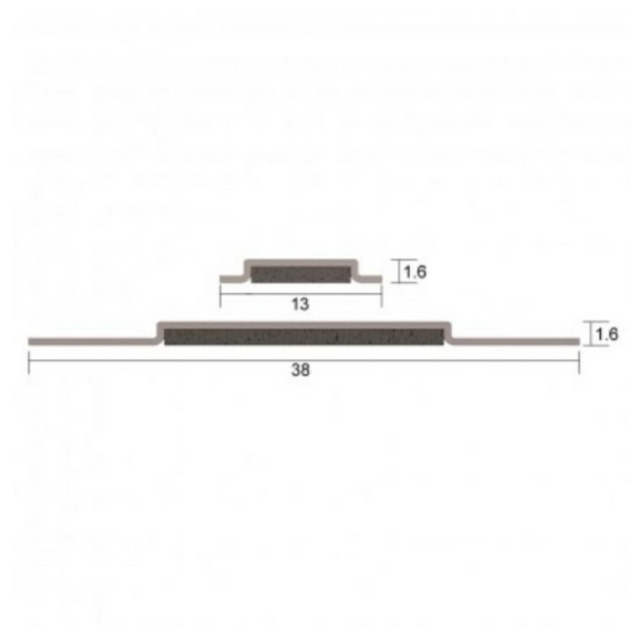

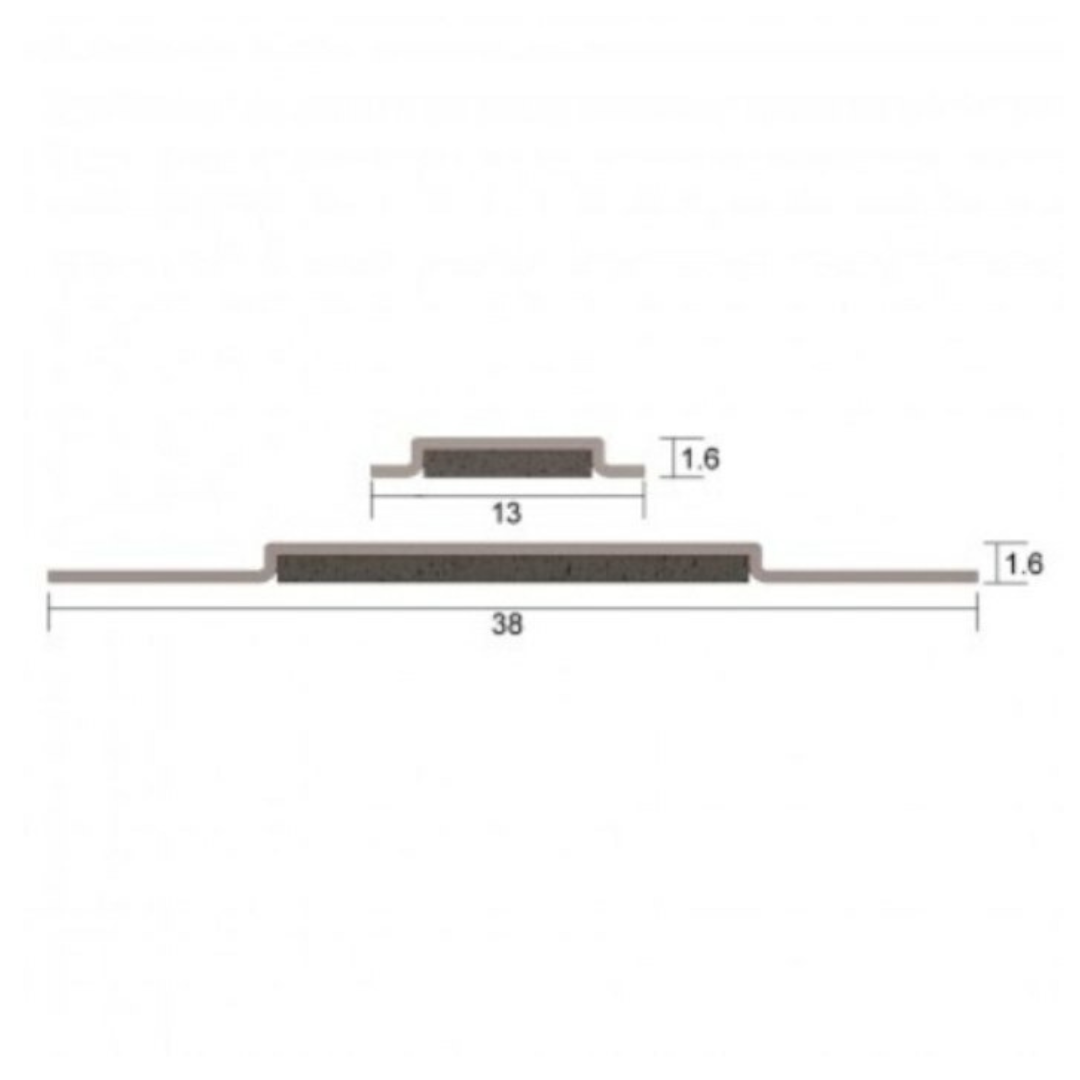

Dimensions: 1 x (38mm x 1.6mm)
1 x (13mm x 1.6mm)

Finish

Standard Colour: White, Silver
Can be painted on-site

Fixing

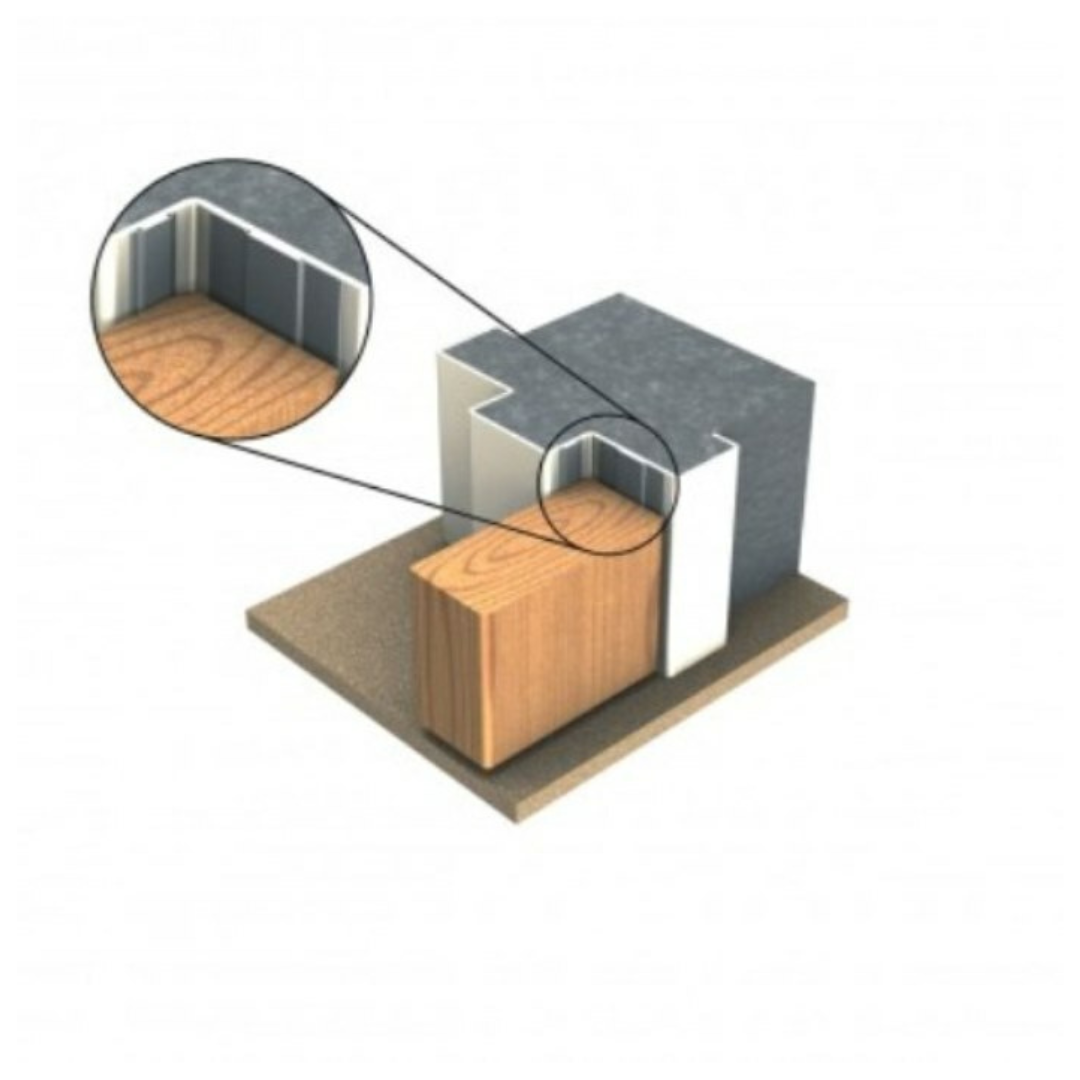

The KG5102 intumescent seal set is simply applied to the top and sides of the door frame with rows of aggressive self-adhesive tape. No screw fixing required.

Approval/s

  • Fire tested to AS/1530 Part 4 for up to 2 hours on proprietary fire door assemblies in accordance with AS1905 Part 1
