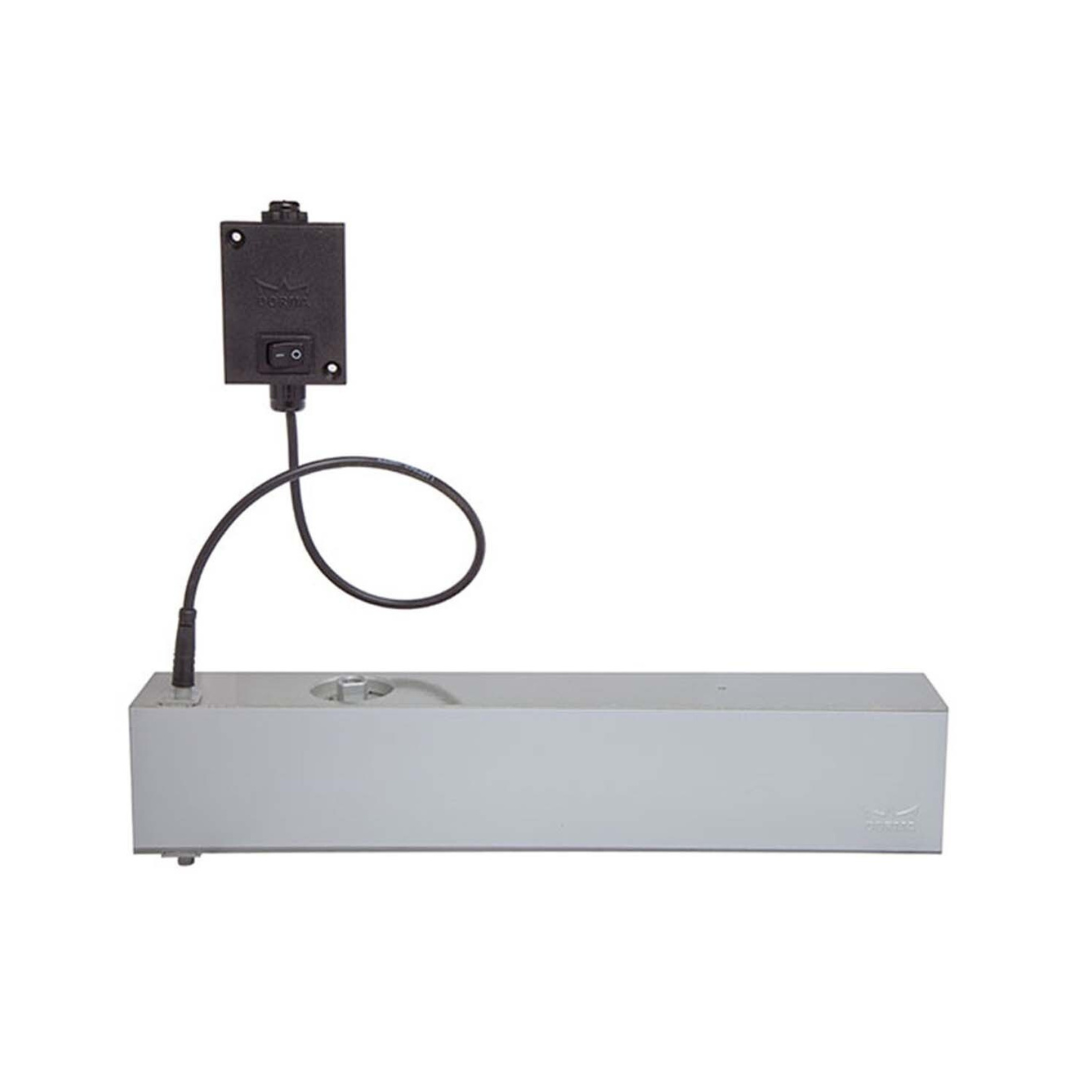

Name: Dormakaba TS73 EMF Hydraulic Door Closer
Brand: Dormakaba Australia Pty Ltd
SKU: TS73-EMF-SF-4 SIL
Price: 1257.94 AUD
Availability: InStock

Dormakaba TS73 EMF Hydraulic Door Closer

Got custom requirements? Email us for assistance

Dormakaba TS73 EMF Hydraulic Door Closer

TS73-EMF-SF-4 SIL

$1,257.94

incl GST.

Current Stock: 5

OUT OF STOCK

Current Lead time: 5-10 days

Current Stock: %number%

Current Stock: 5

Not seeing your Trade price? Be sure to log in.

Combination of hydraulic door closer and electromagnetic hold-open unit.

Hold-open of the door is performed under electromagnetic control.

In the event of a fire, door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Features:

Suitable for fire doors
Input voltage is 24VDC
Power input max is 2 volts
Closing speed adjustable by valve and latching speed is adjustable by arm.
Free selection of the hold open point (opening angles over 75Â°) is variable at any time without the need for adjustment of setting controls.
Body Only
Electro-magnetic hold open unit - body only - 53010101

Specifications:

Spring Strenght: EN4
Max Door Width: 1100mm
Operating Voltage: 24V DC
Type: Standard Fix
Length: 320mm
Width: 45.5mm
Height: 60mm
Finish: Silver

Certification:

CE Marked
CERTIFIRE approved for fire doors: ITT120 MM/IMM240
BSI approved BS EN1155
