Raven RP76SI Intumescent Perimeter Seal - Red
Raven RP76SI Intumescent Perimeter Seal - Red

Got custom requirements? Email us for assistance

Raven RP76SI Intumescent Perimeter Seal - Red

A76SIR

$52.17

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Current Lead time: 5-10 days
Current Stock: %number%

Out of Stock - Current Lead time: 5-10 days

Not seeing your Trade price? Be sure to log in.

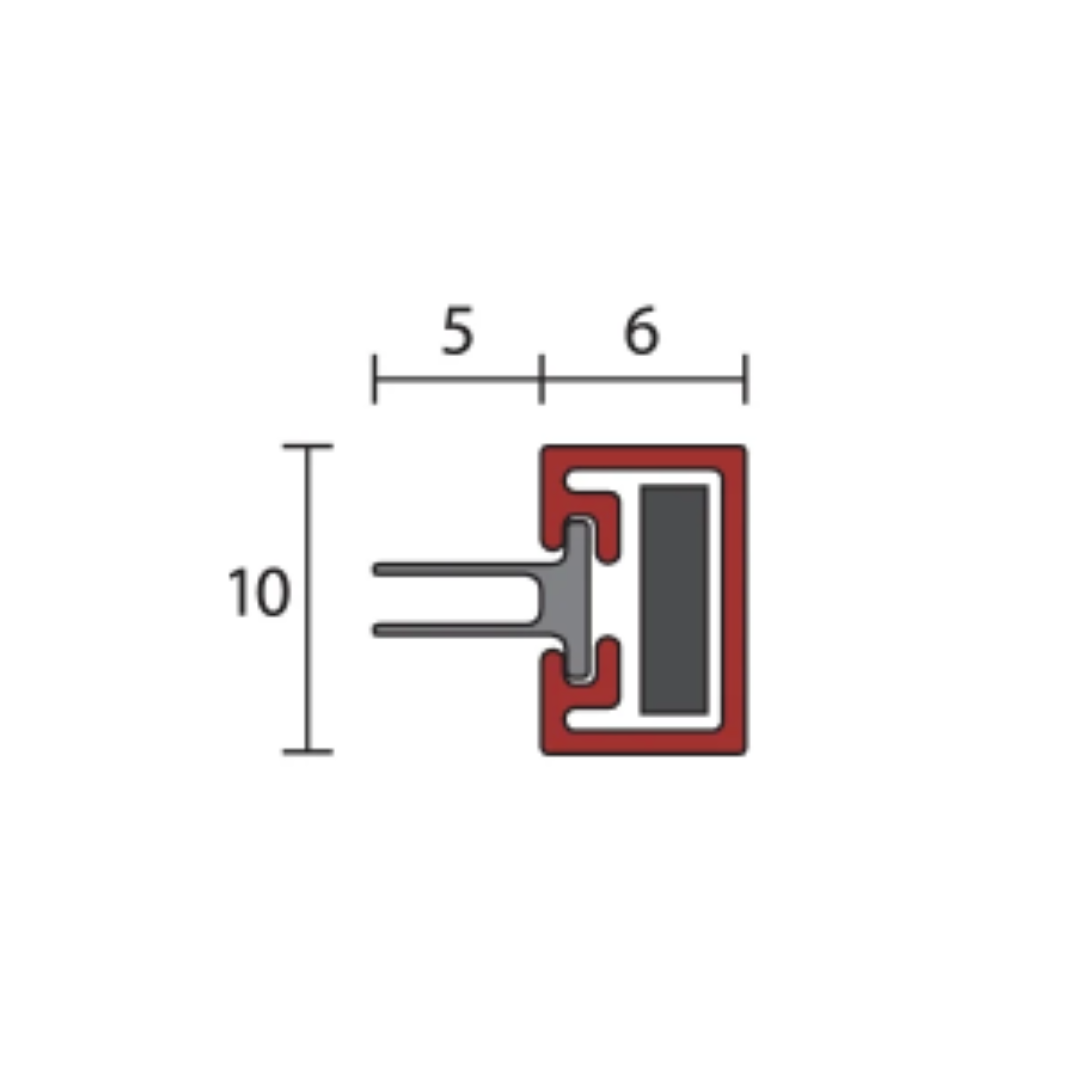

A combined intumescent smoke and fire seal which is heat activated and utilises a pair of silicon fins to achieve a medium temperature smoke seal. It is unobtrusively set into a machined groove (10x6mm) around the perimeter of timber frame or door edges. Dependent on application, fire ratings of one to four hours have been certified by fire door manufacturers using RP76Si intumescent fire and smoke seals.

Location

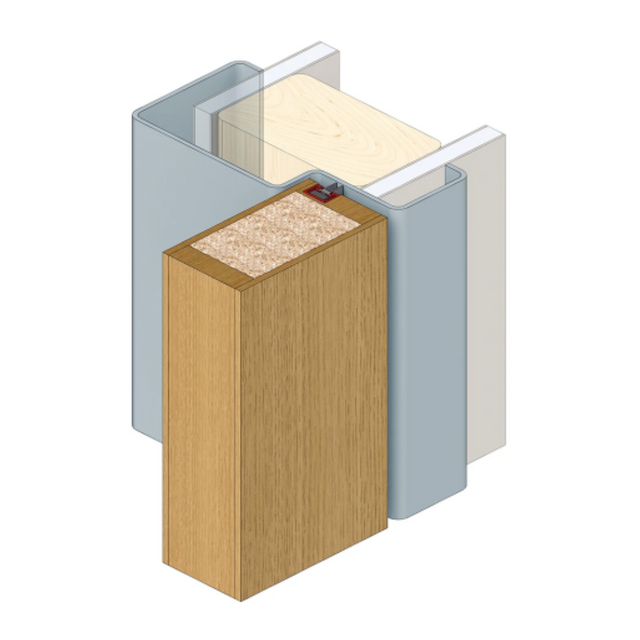

  • Morticed into the door frame and around stiles and head.



Size/Length

  • 2100mm



Fixing

  • Adhesive Fixed
  • Adhesive fix (by installer) into a 10mm x 6mm groove.



Min & Max Gap

  • 4mm to 5mm



Replacement Seals



Available Colours

  • Red



Material

  • Rigid PVC
  • Rigid PVC holder with intumescent infill and silicon rubber (SE) medium temperature smoke seal.



Door/Frame Construction

  • Timber, Aluminium



APPROVALS

Fire AUS/NZ
NZBC C/AS2 4.16.2(a) & App C6.1.1, NCC Spec C3.4, AS 1530.4:2005 & earlier
Smoke AUS/NZ
BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7
Energy AUS/NZ
ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
