Raven RP12 Perimeter Seal
Raven RP12 Perimeter Seal
Raven RP12 Perimeter Seal

Got custom requirements? Email us for assistance

Raven RP12 Perimeter Seal

A12C1000

$48.48

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Lead time:5-10 working days - subject to supplier lead time.
Current Stock: %number%

Out of Stock - Lead time:5-10 working days - subject to supplier lead time.

Size

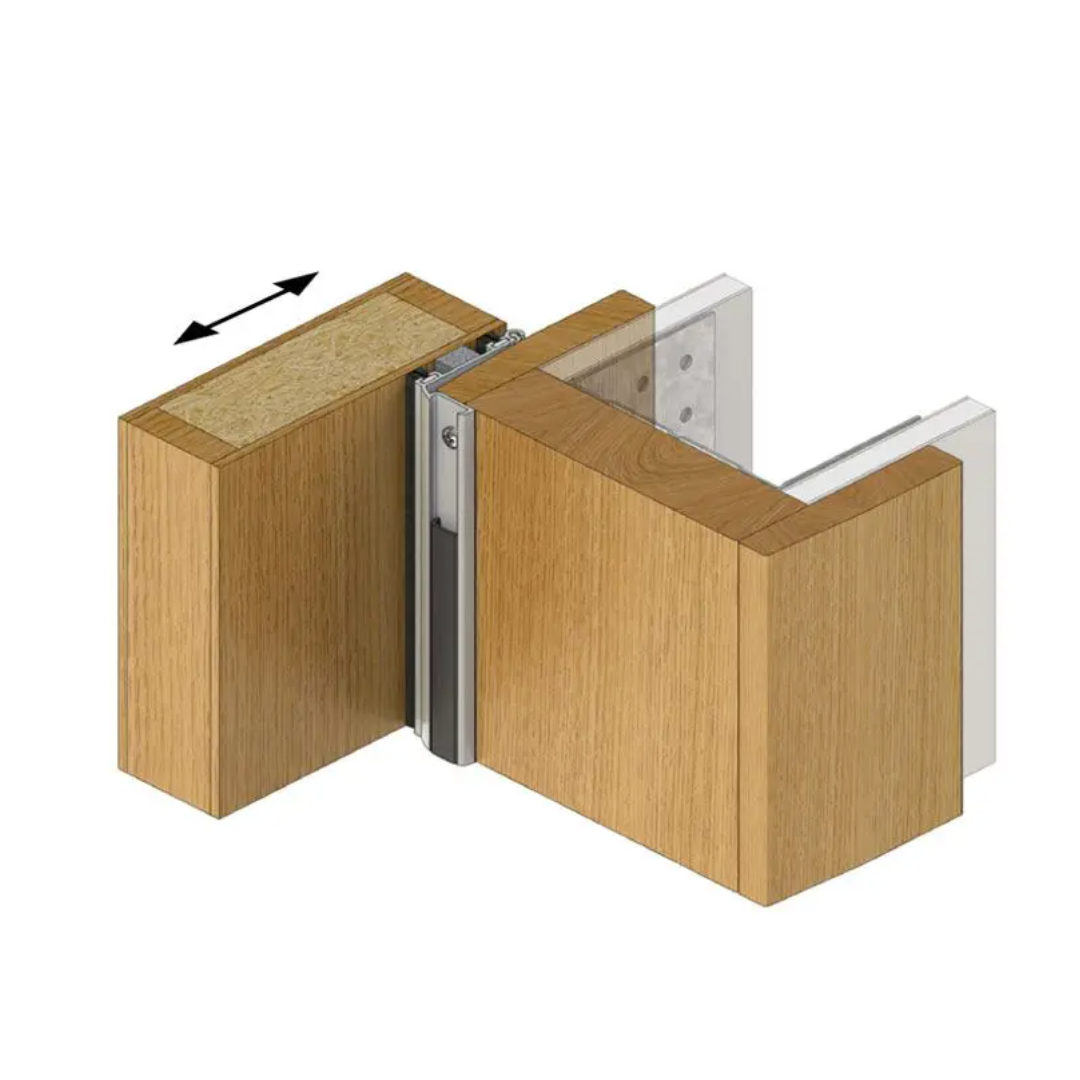

The RP12 has a woven pile weather strip with unique Quiet-fins for noise protection. Ideal for sliding doors and designed to limit noise leakage and control dust and air movement. The RP12 is quick and easy to install to the door or frame.




Can be used in conjunction with a double row of RP2 seals fitted into grooves in the door bottom edge or face mount RP74 to achieve a complete sealing system.



Location: Head and jambs of door frames.
Min/Max Gap: 6mm to 8mm (prior to installation).
Finish: Satin clear (silver), bronze anodised aluminium (15micron) or paint at extra cost.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted to allow the seals to be fitted accurately and adjustment to be made for building movement.

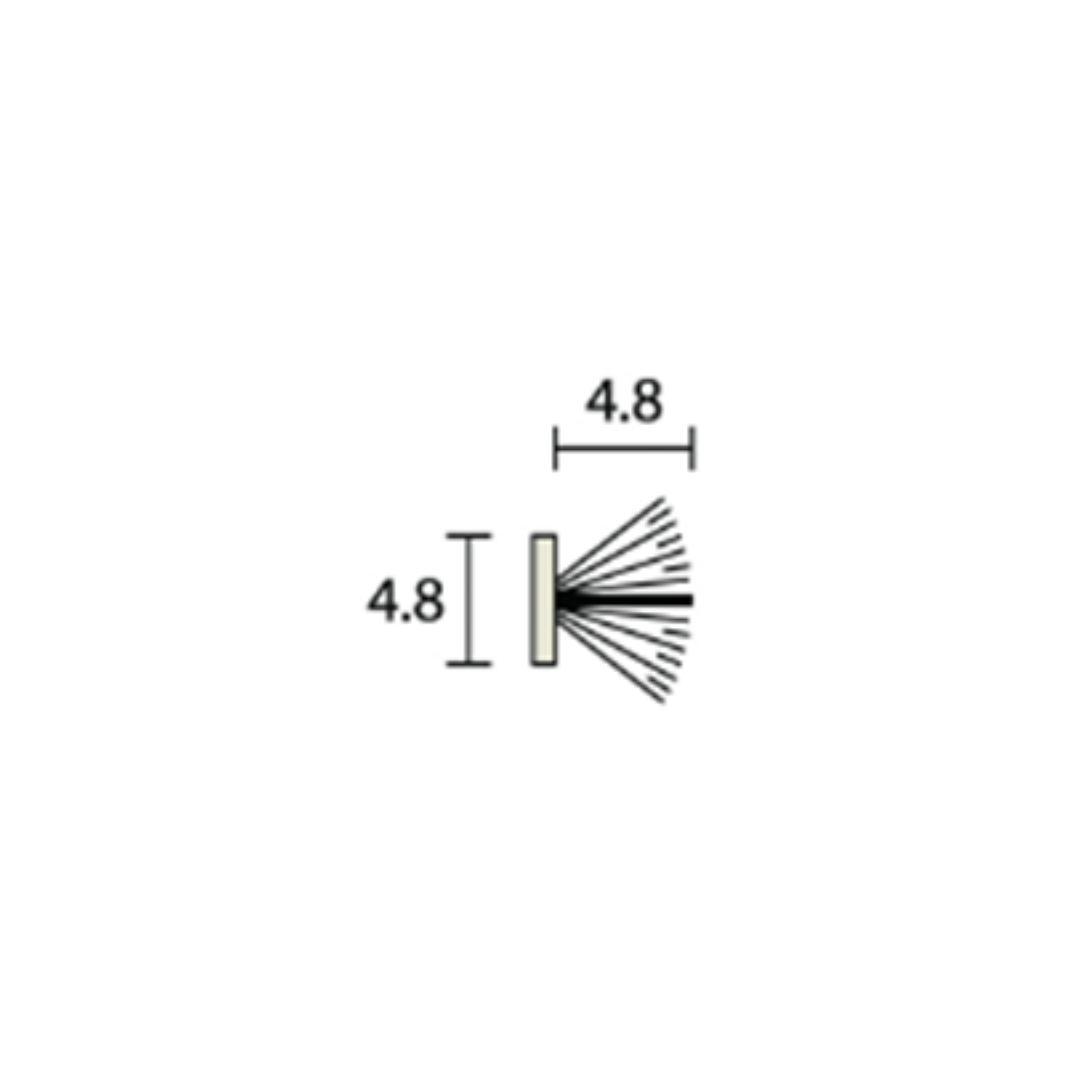

Seal: Black polypropylene pile with felt weather fins.
Sizes: Available in stock lengths.

Approvals
Energy NCC Pt. 3.12.3.3 & J3.4.


Brand Raven

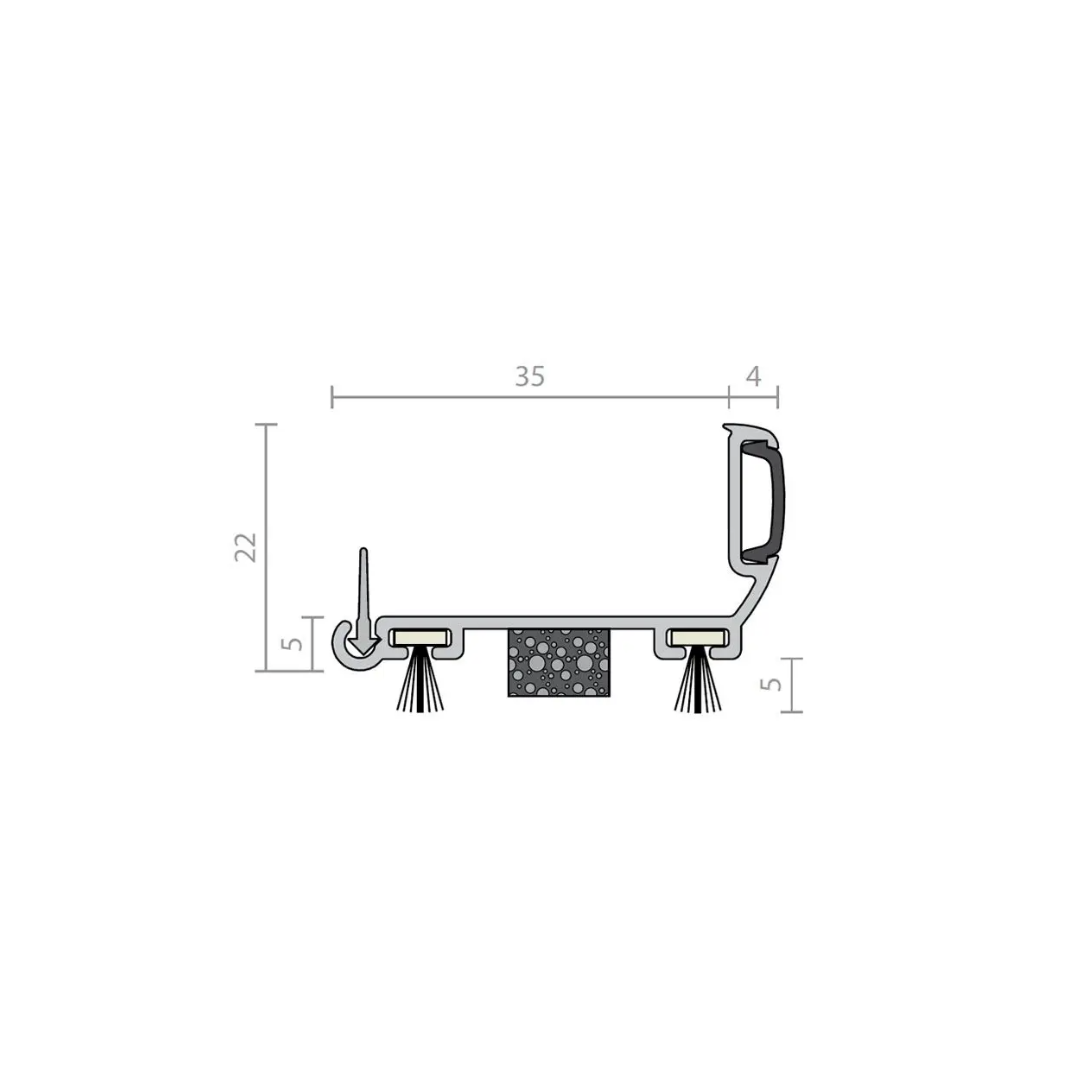

Product Width 35mm
Product Height 22mm
Product Warranty 2 Years
Door Seal Length 1000mm
Product Finish or Colour Clear Anodised (CA)
Product Material Aluminium
Includes Fixing Screws Yes
Fire Tested  No
Acoustic Rated to AS1191 and ISO140.3 Yes
Suitable for Smoke Doors  No
Suitable for Door Type Timber Doors, Aluminium Doors
Contains Intumescent Material No
Seal Can Be Installed Surface Fix
Gasket / Seal Colour Black
Gasket Material Nylonpoloypropylene
Min Door Gap 6mm
Max Door Gap 8mm
Self Adhesive No
