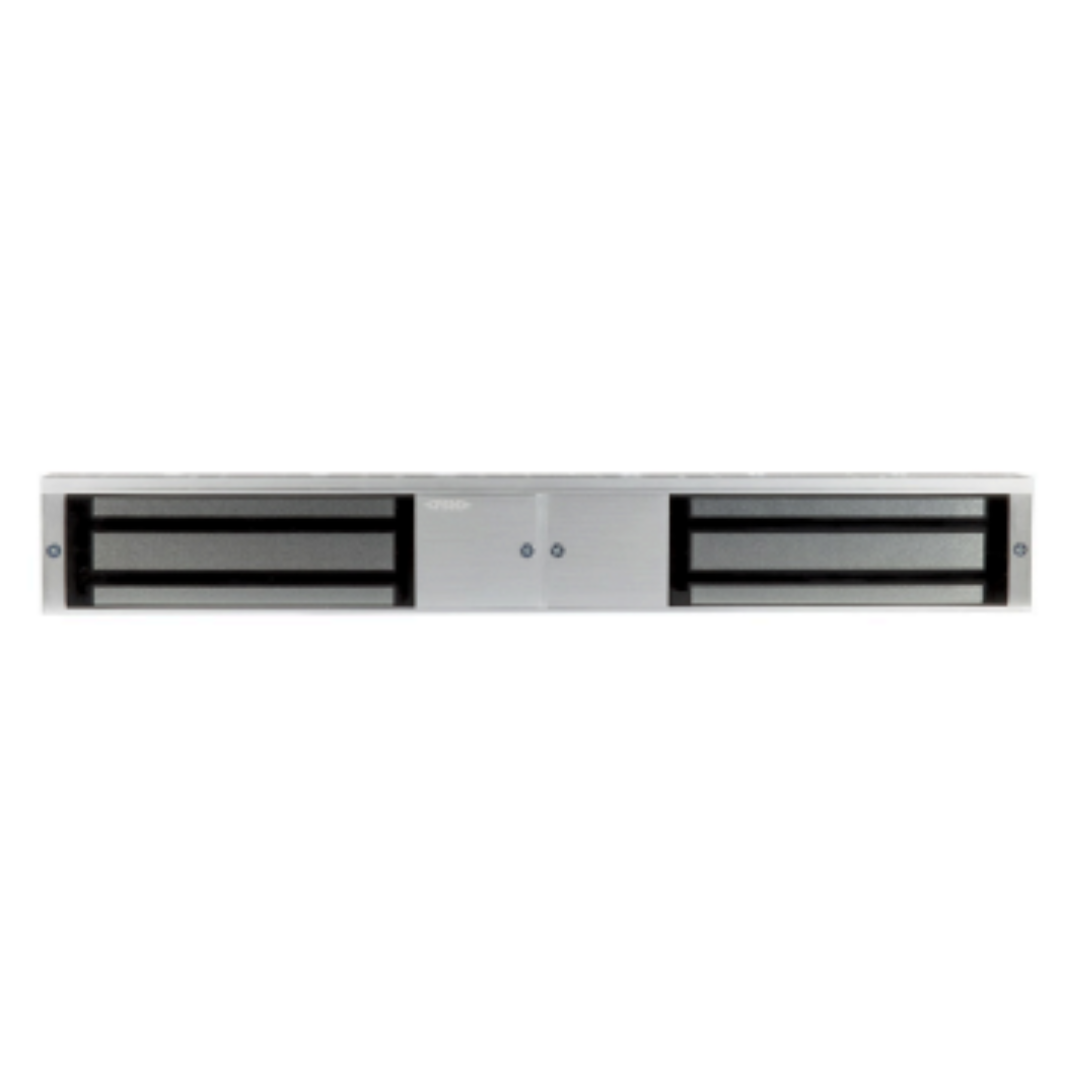

The FSH FEM6600 Series electromagnetic locks offer superior security and reliability, backed by a 5-year mechanical and electronic warranty and an impressive holding force of up to 580kg. This ensures confidence that building entrances are effectively secured, safeguarding both people and property.

Independently tested to Australian and New Zealand standards, including a 2-hour fire rating, the FEM6600 Series provides compliance and reliable performance. These dual-voltage maglocks (12/24VDC) are available in single or double (D) configurations, with options for monitored (M) or non-monitored operation. Designed with zero residual magnetism when powered off, the locks minimise wear on both the door and hardware, enhancing durability and user experience.

Monitored versions (M) feature a red/green LED indicator for clear door and lock status visibility. Compatible with a wide range of access control solutions - including PIN pads, fob readers, and other credential platforms - the FEM6600 Series is ideally suited to diverse commercial applications.

Features:

• Dual Voltage: 12 /24 VDC field selectable
• Door and Lock Status Monitoring Sensor (DSS and LSS S with “M” Models)
• Built-in varistor (MOV) surge protection
• Red-Green bicolour LED on the monitored version
• No residual magnetism
• 5-year warranty
• Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015)

Technical Details:

• Holding strength: Up to 580kg.
• Voltage/current: Dual Voltage 12/24VDC, 500mA/250mA.
• Approvals: Up to 2-hour fire-rated in accordance with AS1905.1:2015 (contact Allegion for more details). CE/C-Tick.
• Monitoring: Red-green bicolour LED Lock Status Sensor (LSS), Door Status Sensor (DSS).

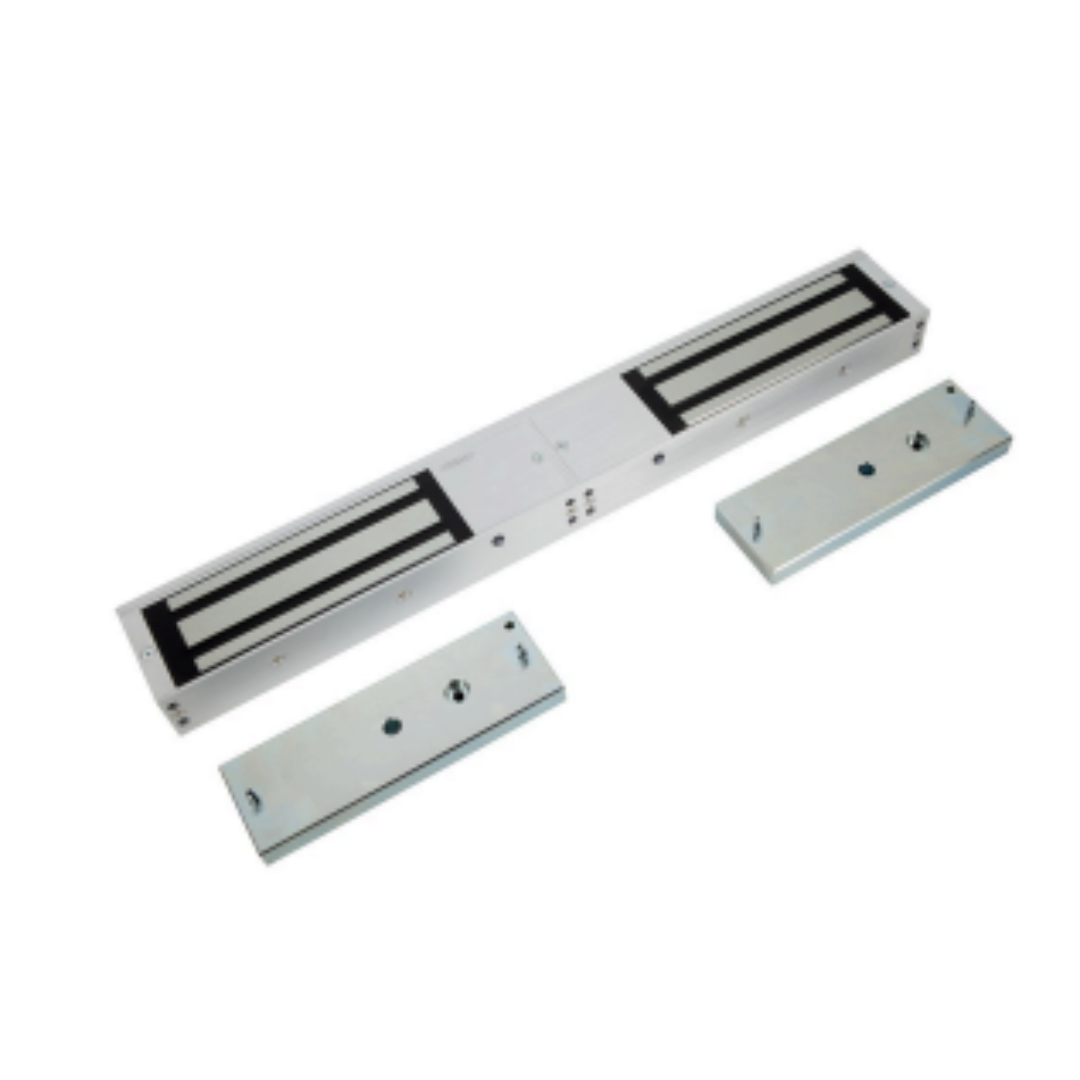

• Dimensions: Double door series magnet: 535mm (L) x 3mm (W) x 40mm (D). Double door series armature plate: 190mm (L) x 61mm (W) x 16mm (D)
• 2 pieces.
