Name: Raven RP98 Threshold Plate 19mm
Brand: Raven Products Pty Ltd
SKU: A98C1000
Price: 205.81 AUD
Availability: InStock

Got custom requirements? Email us for assistance

Raven RP98 Threshold Plate 19mm

A98C1000

$205.81

incl GST.

Current Stock: 0

OUT OF STOCK

Current Lead time: 5-10 days

Current Stock: %number%

Current Lead time: 5-10 days

Not seeing your Trade price? Be sure to log in.

Size

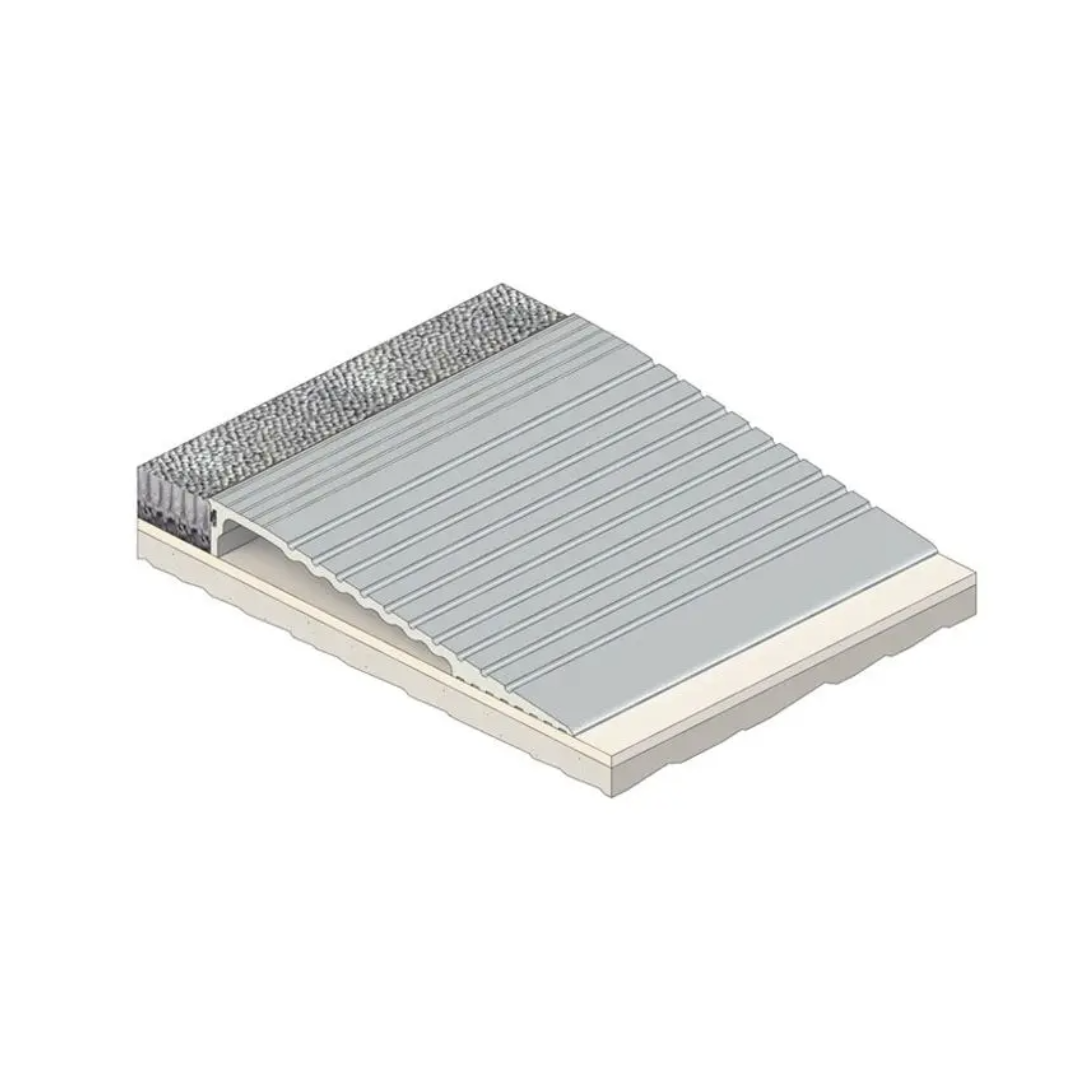

A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b).
Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.
Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways.
Can also be used to provide a ramped frame for internal door mats.

Location: Door sill.
Finish: Satin clear (silver) anodised aluminium (25micron).
Fixing: Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Can be fastened with builders adhesive for concealed fixing.
Sizes: 1000mm, 1250mm, 2000mm, 2500mm..
Specify longer length than doorway to allow for neat installation around door frame.

Approvals
UL Cert. GVYI.R37913
Access & Mobility AUS/NZ: NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
FRL & FRR-/240/30. Fire Approved
Fire Approved when used with a BAL rated door bottom seal in accordance with AS 3959.

MPN	A98C
Brand	Raven
Product Width	150mm
Product Height	19mm
Product Warranty	2 Years
Product Finish or Colour	Clear Anodised (CA)
Product Material	Aluminium
Includes Fixing Screws	Yes
AS1428.1 Compliant	Yes
Fire Tested	Yes
Acoustic Rated to AS1191 and ISO140.3	No
