Raven RP172 Non-Slip Threshold Plate
Raven RP172 Non-Slip Threshold Plate
Raven RP172 Non-Slip Threshold Plate

Got custom requirements? Email us for assistance

Raven RP172 Non-Slip Threshold Plate

A172C1000

$311.09

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Lead time:5-10 working days - subject to supplier lead time.
Current Stock: %number%

Out of Stock - Lead time:5-10 working days - subject to supplier lead time.

Size

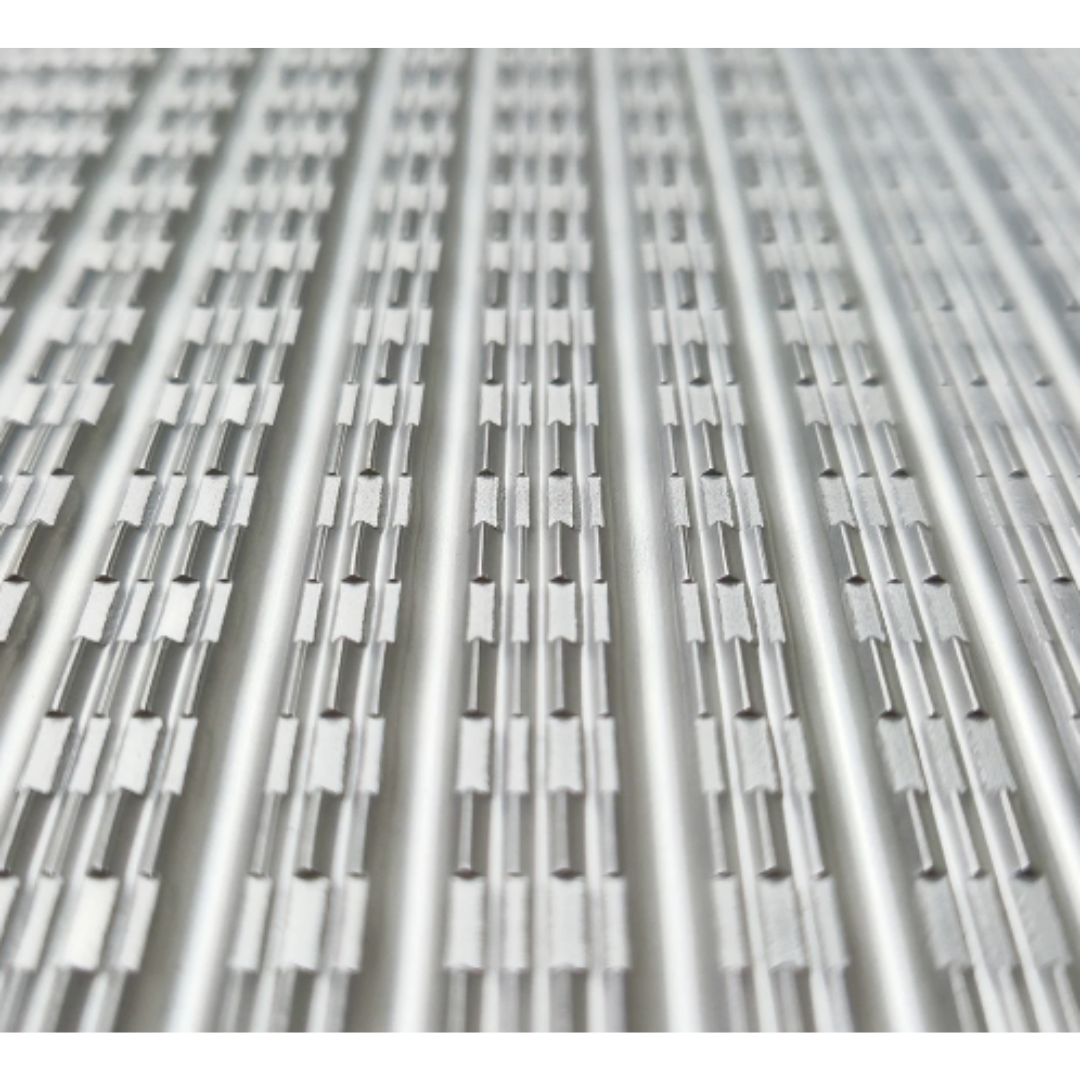

The NEW RP172 is a heavy-duty threshold ramp (19mm x 150mm) designed for both functionality and durability. Featuring a unique non-slip surface, it achieves a P5 slip rating*, making it a reliable choice for high-traffic areas.



A heavy-duty threshold ramp with a ribbed design which can be positioned back-to-back to form a two-way threshold ramp conforming to NCC D3D16 (b).



Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.

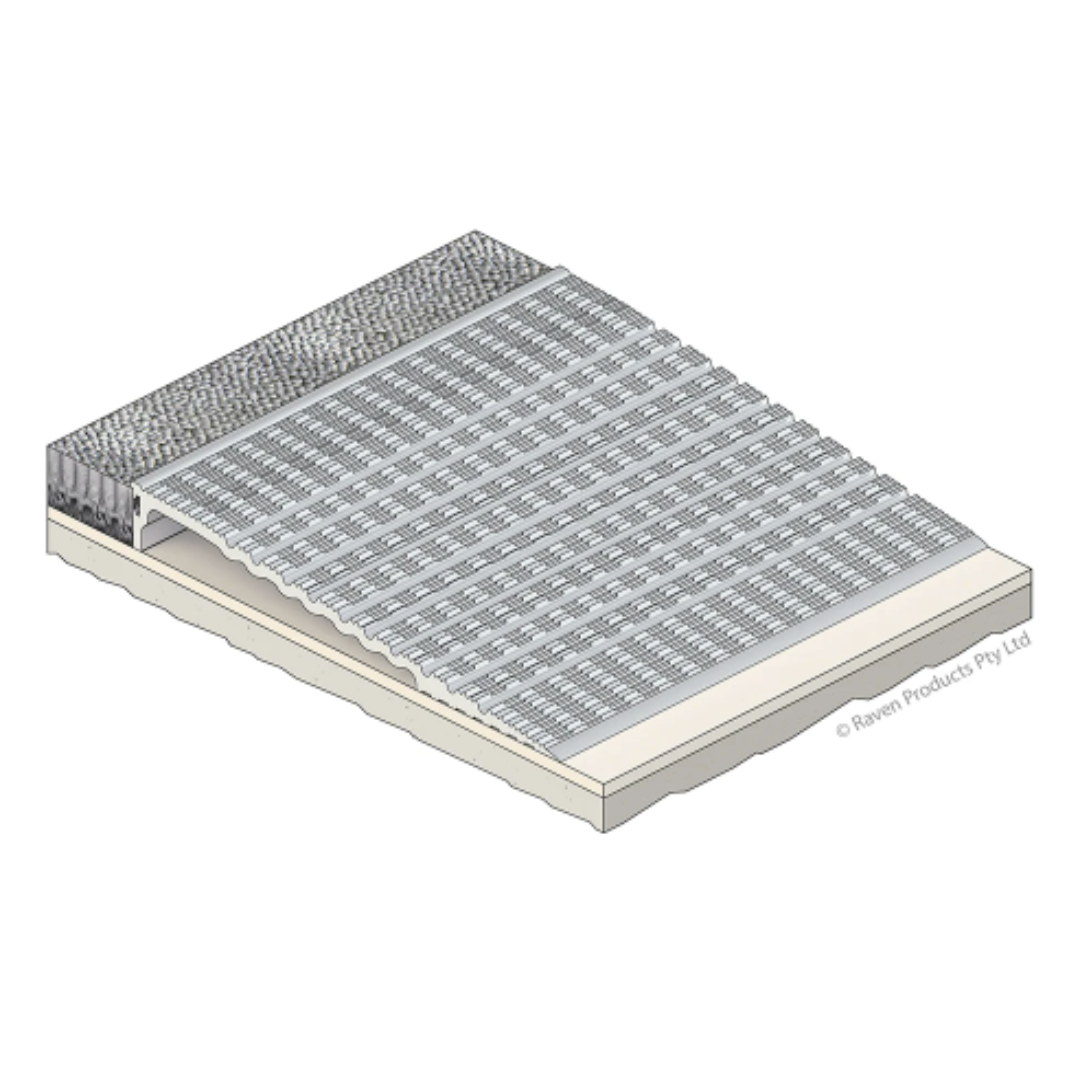

Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at doorways.



Can also be used to provide a ramped frame for internal door mats.

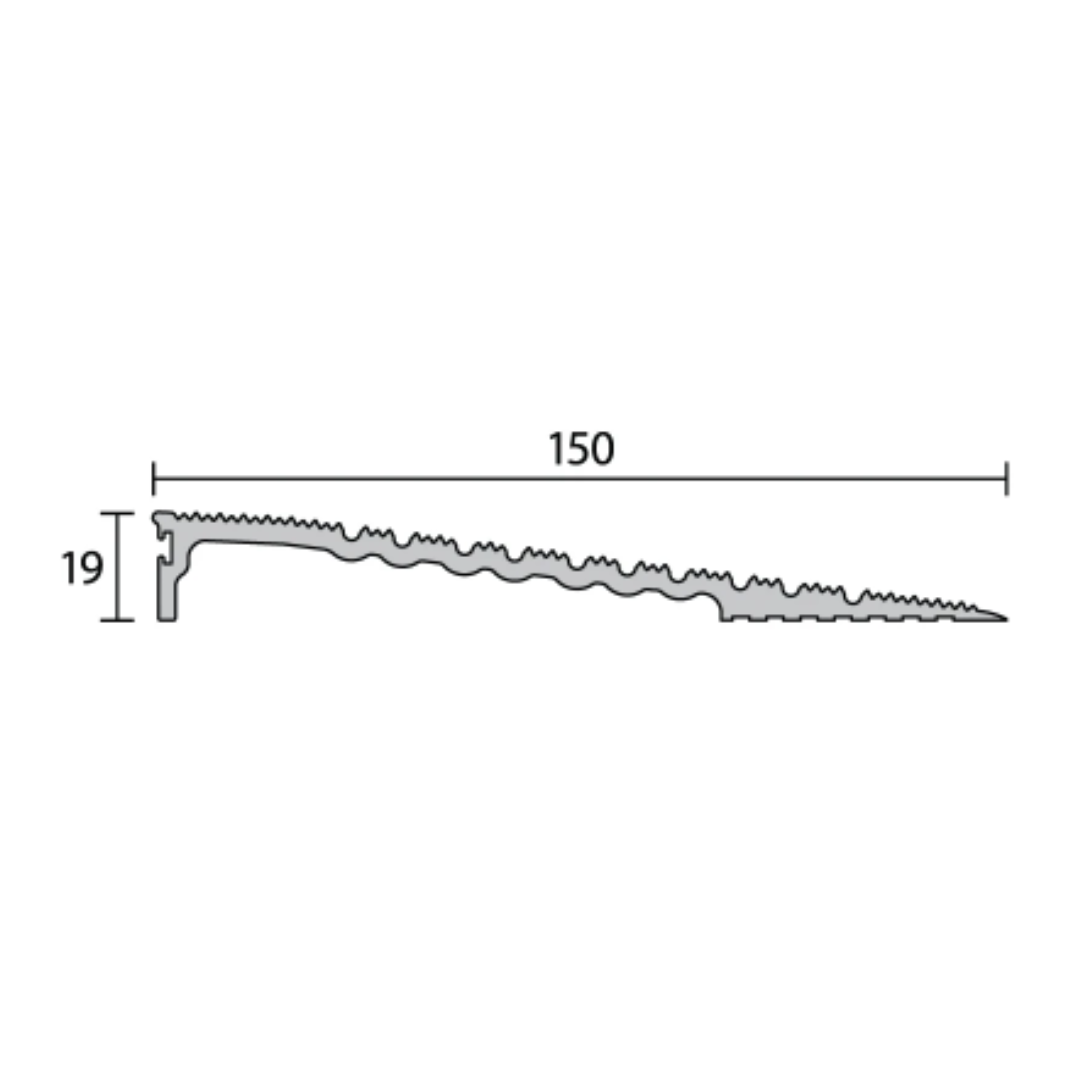

Size: 19mm x 150mm

Lengths: 1000mm, 1250mm, 2000mm, 2500mm, 3000mm

Finish: Silver Anodised

Material: Aluminium



What Problems Do They Solve?

·       Non-compliant entryways that fail to meet AS 1428.1

·       Raised thresholds that restrict wheelchair or trolley access

·       Weather and energy sealing compliance

·       Access and egress issues in high-traffic commercial spaces

·       Difficult installation or ongoing maintenance



Why Are They The Best Option?

Compliant

ü  Fully meets the requirements of AS 1428.1

ü  All profiles maintain a gradient of 1:8 or less

ü  Compatible with a wide range of Raven door bottom seals



Durable

ü  Manufactured from anodised aluminium

ü  Designed to withstand foot traffic and commercial use



Versatile

ü  Suitable for new builds and retrofits

ü  Ideal for use in aged care, healthcare, retail, and commercial

ü  Low-profile aesthetic complements a range of door designs



Easy to Install

ü  Can be trimmed to length on site

ü  Can screw fix or adhesive fix for a concealed, professional look

ü  Mitre cut ends protruding at doorway to provide side returns



*A P5 slip rating is the highest level of wet slip resistance in Australia, indicating a very low risk of slipping. It is required for hazardous, constantly wet, or greasy areas like commercial kitchens, public pool surrounds, and steep, exposed outdoor ramps. P5 tiles usually have a very rough, textured finish.
