Raven RP160 Intumescent Seal
Raven RP160 Intumescent Seal

Got custom requirements? Email us for assistance

Raven RP160 Intumescent Seal

A160BK3000

$33.89

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Lead time:5-10 working days - subject to supplier lead time.
Current Stock: %number%

Out of Stock - Lead time:5-10 working days - subject to supplier lead time.

Size

A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

  • An intumescent fire and smoke seal

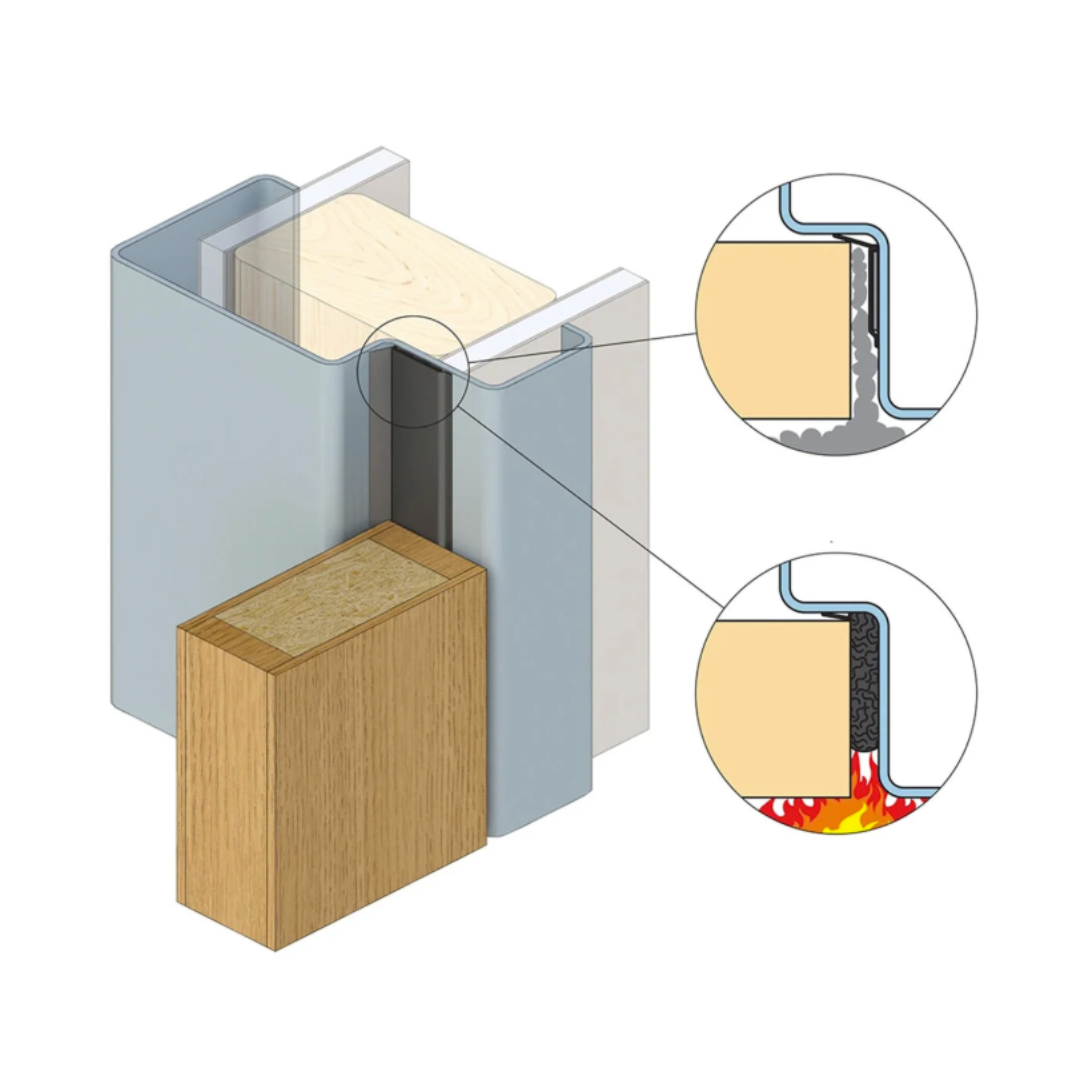

  • Heat-activating intumescent expands at a lower temperature, offering improved smoke and fire sealing performance over traditional batwing fin type seals
  • Thin profile and fin placement design allows easier door closing and latching in accordance with door closing force

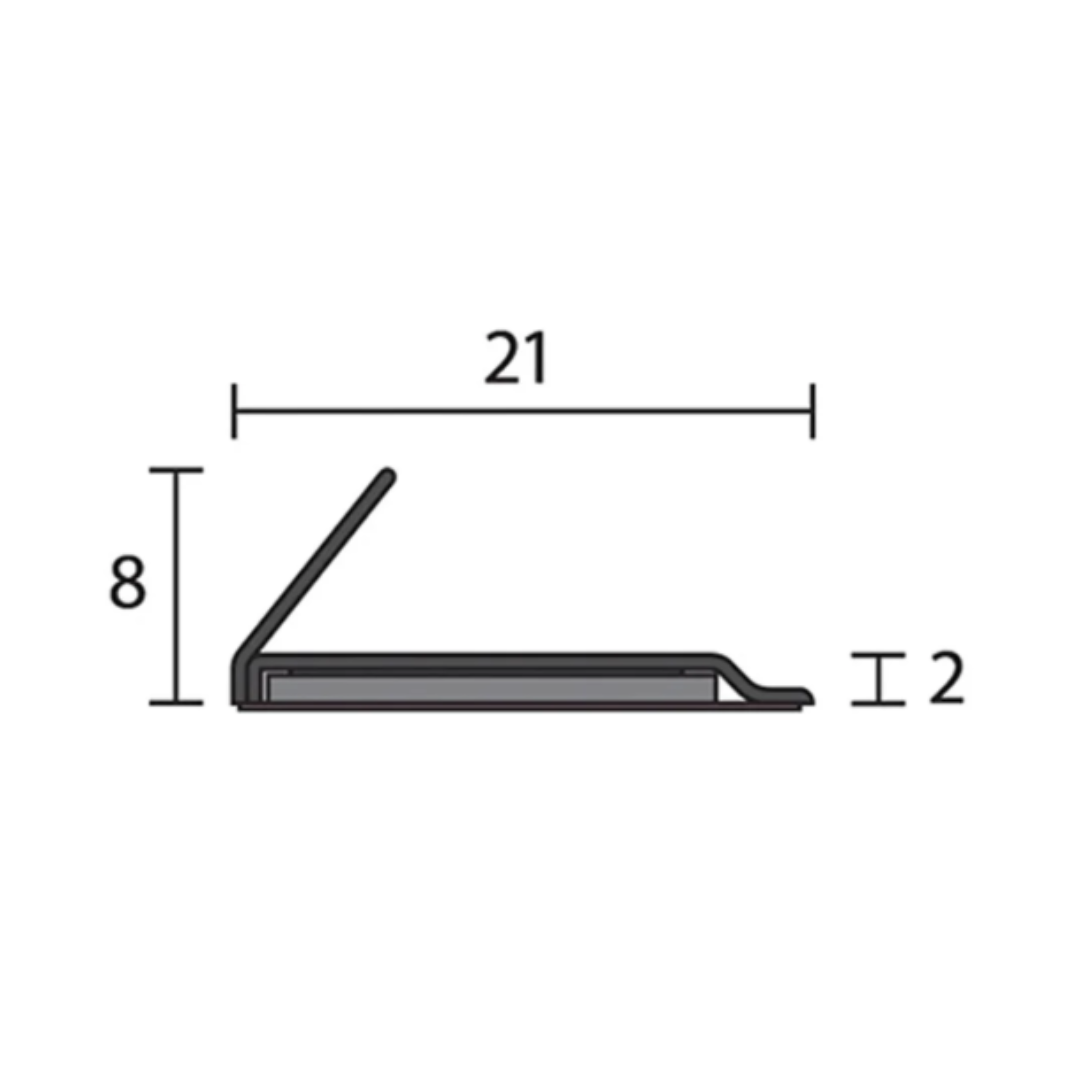

Specifications:

  • Min and Max Gap: 2.5mm - 7mm
  • Fixing: Self-Adhesive
  • Width: 21mm
  • Thickness: 2mm
  • Projection: 8mm
  • Lengths:
    • 3000mm
    • Various Door Sets (see below)
  • Finish: Black, White

Approvals:

  • NCC Spec C3.4, AS 1530.4:2005 & earlier, NZBC C/AS2 4.16.2
  • Approved Document B, Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22
  • Up to FRL & FRR-/120/30
  • NCC S12C4, Tested to AS 1530.7, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, Tested to BS EN 1634-3
  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
