Raven RP118si Perimeter Seal

A118SIC1000

$50.55

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Lead time:5-10 working days - subject to supplier lead time.
Current Stock: %number%

Out of Stock - Lead time:5-10 working days - subject to supplier lead time.

Size

A smoke, weather and acoustic door frame seal suitable for outward opening butt hinged doors. Designed to accommodate a latch engagement for suitable panic exit devices at the head of the door. The RP118Si used in conjunction with the RP117Si threshold plate seal provides a bulkhead seal around the door with a top and bottom latch engagement.
Quick and easy to install with a mitre joint without removing the door, the RP118Si is slotted for adjustment and has concealed fixings.

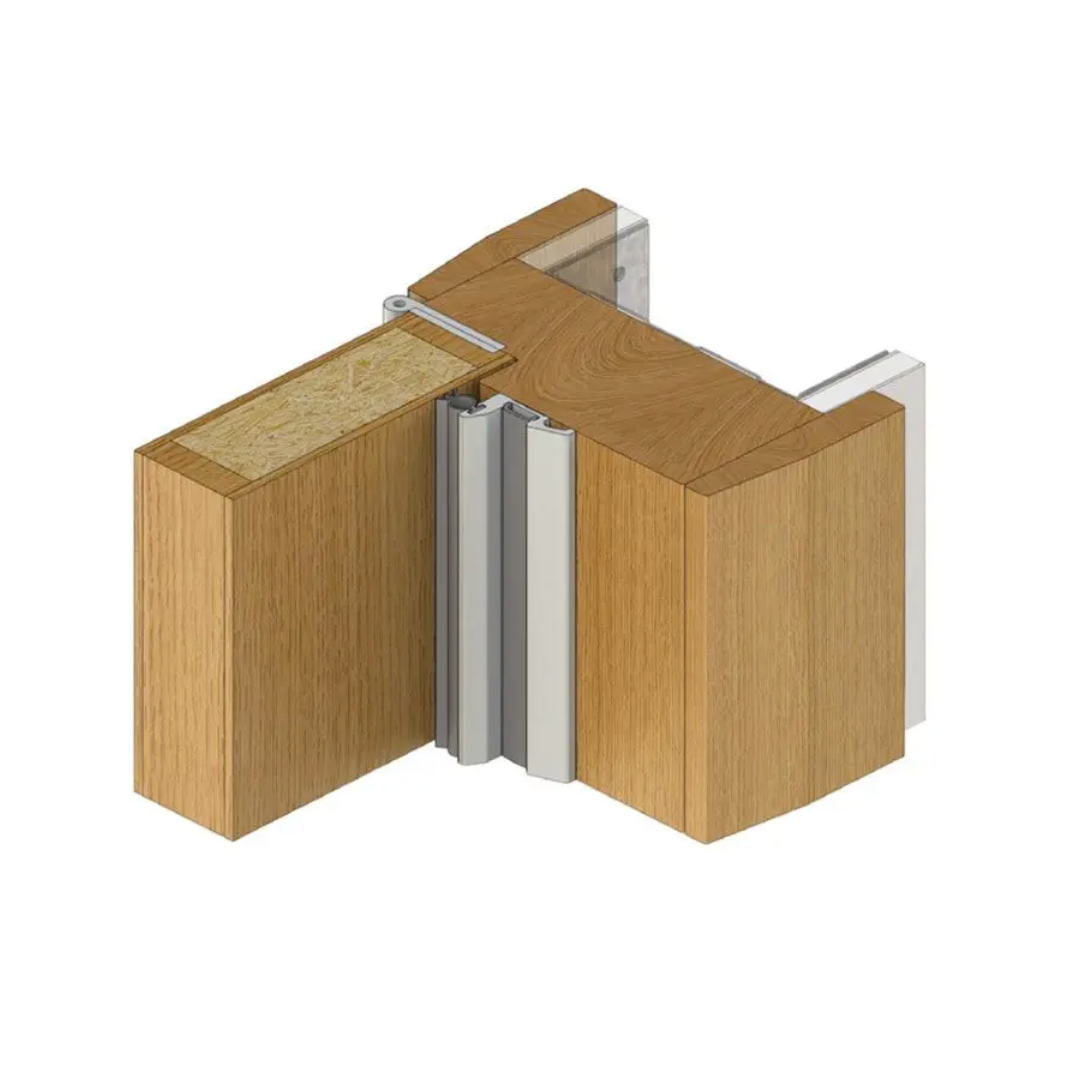

Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 10mm.
Finish: Satin clear (silver) anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: RP308Si. Grey silicon rubber (SE).
Sizes: Available in stock lengths.

Approvals
UL Cert. GVYI.R37913.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Smoke AUS/NZ: NCC Spec. C3.4. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B.
Gasket flammability index 1 when tested to AS1530.2.
Energy NCC Pt. 3.12.3.3 & J3.4.



MPN A118SIC
Brand Raven

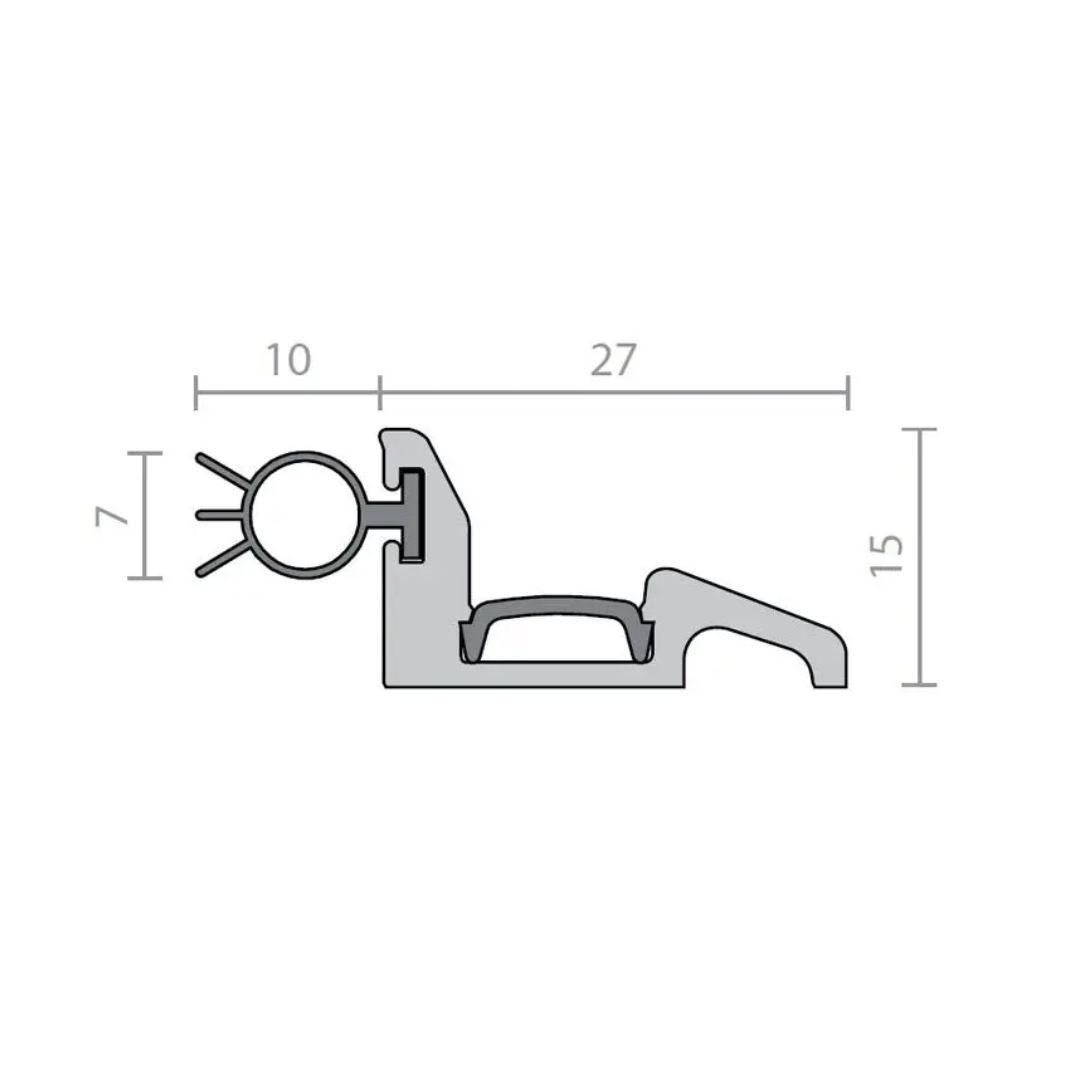

Product Width 37mm
Product Height 15mm
Product Warranty 2 Years
Product Finish or Colour Clear Anodised (CA)
Product Material Aluminium
Includes Fixing Screws Yes
Fire Tested  No
Acoustic Rated to AS1191 and ISO140.3 Yes
Suitable for Smoke Doors  Yes
Suitable for Door Type Timber Doors, Aluminium Doors
Bush Fire Attack Level BAL<40
Contains Intumescent Material No
Seal Can Be Installed Surface Fix
Gasket / Seal Colour Grey
Gasket Material Silicon
Min Door Gap 0mm
Max Door Gap 10mm
Self Adhesive No
