Raven RP10si Perimeter Seal

A10SIC1000

$52.83

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Lead time:5-10 working days - subject to supplier lead time.
Current Stock: %number%

Out of Stock - Lead time:5-10 working days - subject to supplier lead time.

Size

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency.


RP10Si can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.

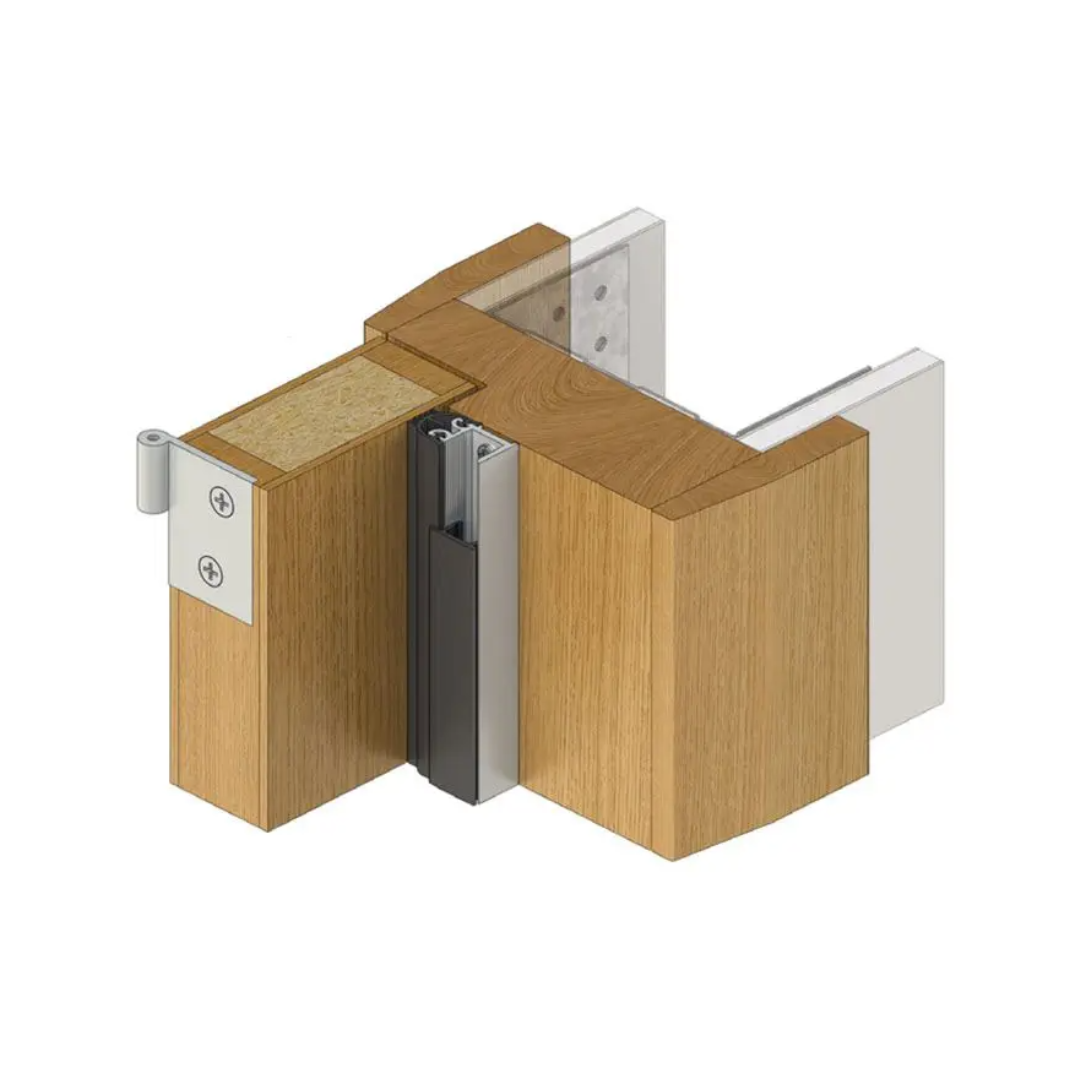

Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 10mm.
Finish: Satin clear (silver), bronze or black anodised aluminium (15micron) or paint at extra cost.
Fixing: Screw fix. Zinc plated, cross recess head S.T. screws supplied.
Seal: RP310Si. Black or light grey silicon rubber (SE).
Sizes: Available in door set sizes or stock lengths.

Painted seals will incur an extra cost - add once order is confirmed.



Approvals
UL Cert. GVYI.R37913.
ANSI/BHMA A156.22.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/60 and FD240. Fire Approved
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 "Sa", "Sm".
Energy NCC Pt. 3.12.3.3 & J3.4.



MPN A10SIC
Brand Raven

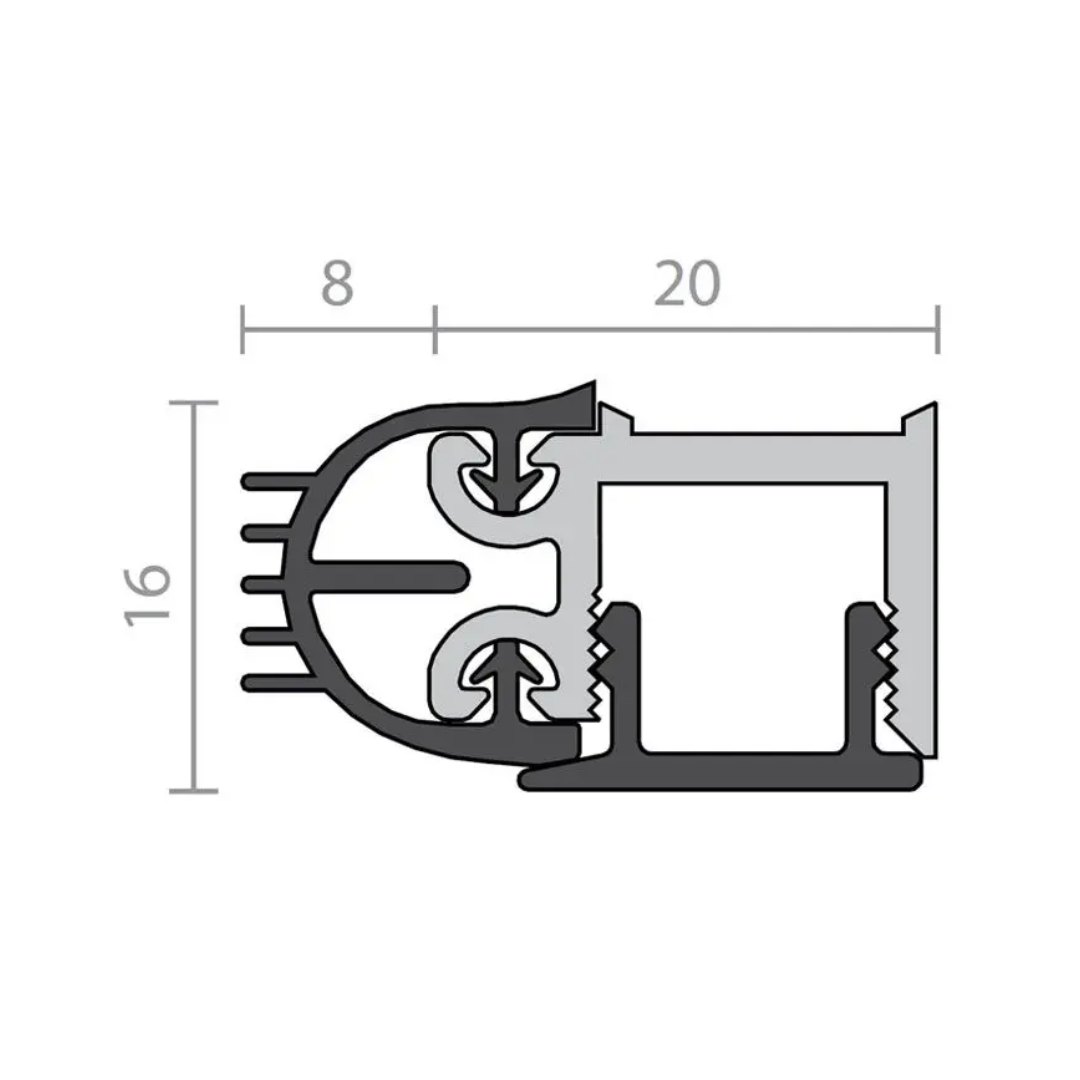

Product Width 28mm
Product Height 16mm
Product Warranty 2 Years
Product Material Aluminium
Includes Fixing Screws Yes
Fire Tested  Yes
Acoustic Rated to AS1191 and ISO140.3 Yes
Suitable for Smoke Doors  Yes
Suitable for Door Type Timber Doors, Aluminium Doors
Bush Fire Attack Level BAL<FZ
Contains Intumescent Material No
Seal Can Be Installed Surface Fix
Gasket / Seal Colour Grey
Gasket Material Silicon
Min Door Gap 0mm
Max Door Gap 10mm
Self Adhesive No
