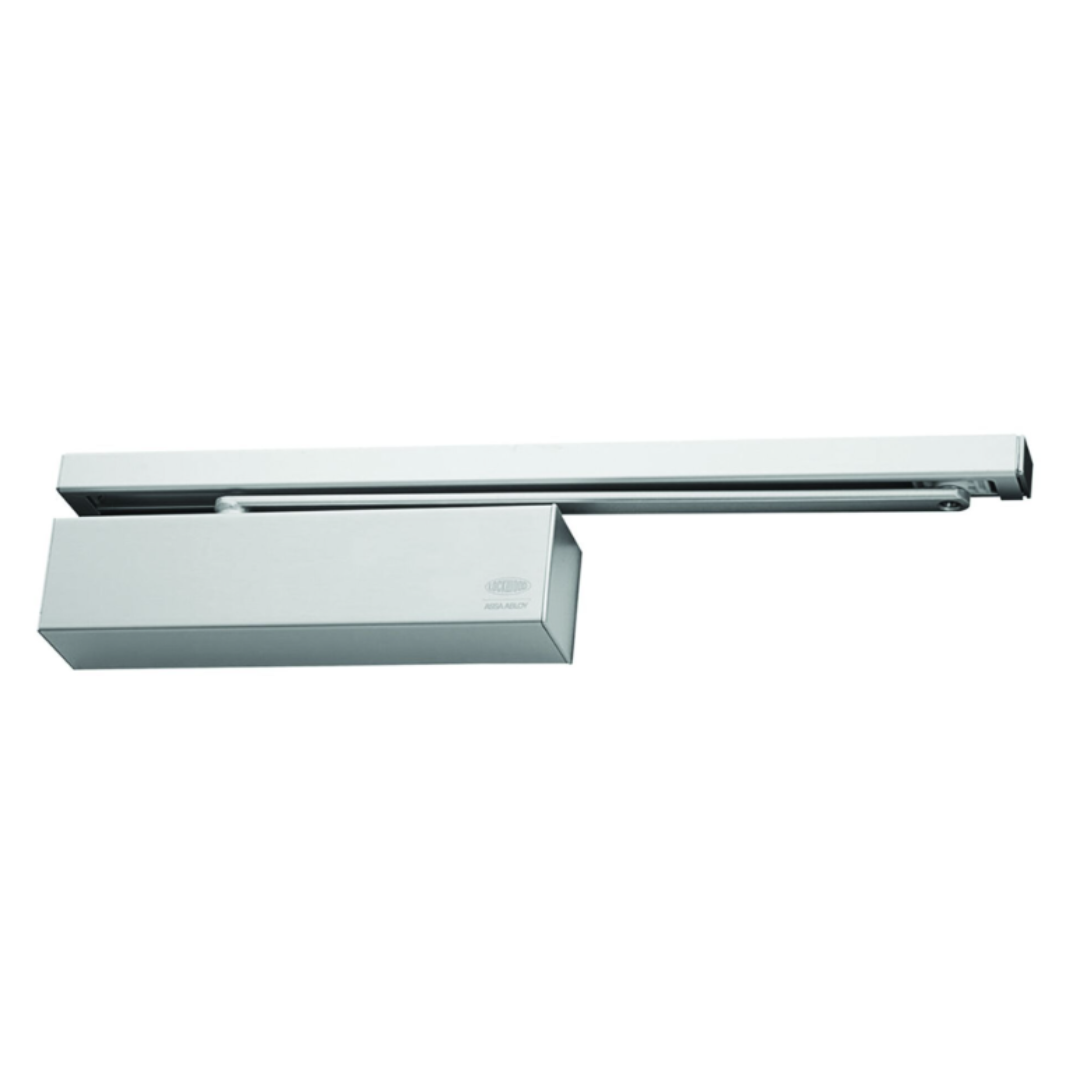

2616EMC Series Electromechanical Hold-Open Slide Arm Door Closer - Stainless Steel

Got custom requirements? Email us for assistance

2616EMC Series Electromechanical Hold-Open Slide Arm Door Closer - Stainless Steel

2616EMCSSS

$2,472.10

incl GST.
Current Stock: 0
OUT OF STOCK
Out of Stock - Current Lead time: 5-10 days
Current Stock: %number%

Out of Stock - Current Lead time: 5-10 days

Not seeing your Trade price? Be sure to log in.

Lockwood Electromechanical Hold-Open Device for Single Doors

The Lockwood 2616EMC is a small single door electromechanical hold open device system with a sliding arm. It is applicable for places, where fire doors are constantly kept open. The door is kept open at a selected angle. If fire breaks out, the door is closed, preventing smoke and flames from spreading.

Applications for the Lockwood 2616EMC include hotels, office buildings and other fire doors where a hold-open function is needed.

Features

  • Compact modern design to suit single door installations
  • Flexibility installation
  • Easy to install on narrow frames (40mm)
  • One unit suits both push and pull sides
  • Maximum door width 1400mm
  • Maximum opening angle 130°
  • For Push side applications, add FD2616-116SIL angle bracket
  • Supplied in a trade pack
  • Finish: Stainless Steel


Fire Rated
The Lockwood 2616EMC Door Control System has been successfully fire tested up to 4 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.

Single Door Function
The door is held open by hold-open device at the selected angle. When the power is switched off, e.g. when smoke detectors react to smoke, the door closes. The hold-open angle for active door can be adjusted from 70° to 130°. Power consumption 1 x 60 mA (24VDC).
